    Laird TE Connectivity OC69271-FNM

    Laird TE Connectivity OC69271-FNM
    Price: $95.95
    SKU: 14878
    Add to Wishlist

    Manufactured by: Laird TE Connectivity
    Manufacturer
    Laird TE Connectivity
    Model #
    OC69271-FNM
    Product Description

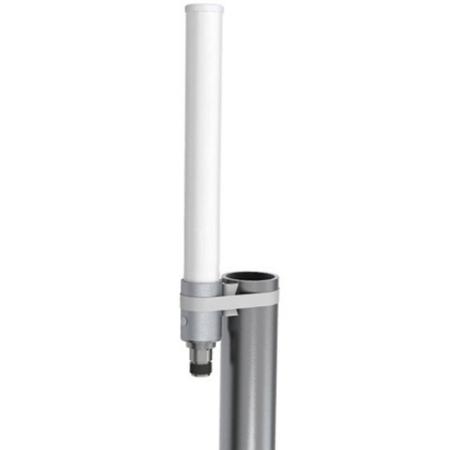

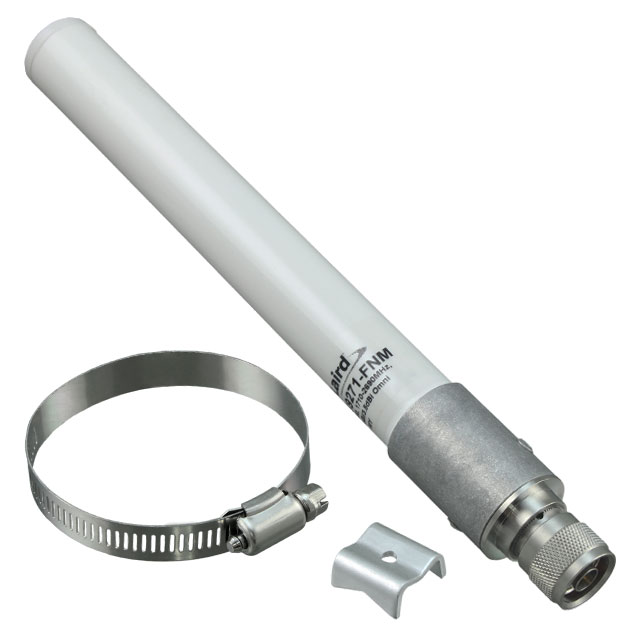

    The Laird OC69271-FNM antenna is a multi-band omnidirectional antenna with N Male connector that covers the domestic LTE700 / Cellular / PCS / AWS / MDS, WiMAX 2300/2500, and global GSM900 / GSM1800 / UMTS / LTE2600 bands. The antenna can be used in both indoor and outdoor applications. It comes complete with mast mounting hardware and includes an ultraviolet (UV) stable radome enclosure.
    Gain dBd
    1.35 dBd
    Gain dBi (dBi)
    1.5 dBi, 3.5 dBi
    RF Connectors
    N Male
    Polarization
    Linear, Vertical
    Specific Frequency
    698-960 MHz, 1710-1990 MHz, 1920-2170 MHz, 2100-2500 MHz, 2500-2690 MHz
    Vertical Beamwidth (Deg)
    81, 75, 100
    Maximum VSWR
    2.5:1, 2.0:1

    Connector Placement
    Bottom

    Frequency Band
    LTE Multi-Band
