MPN: BB4505CNS
BRAND: Laird TE Connectivity
PRODUCT TYPE: Mobile Antenna
SKU: 3232

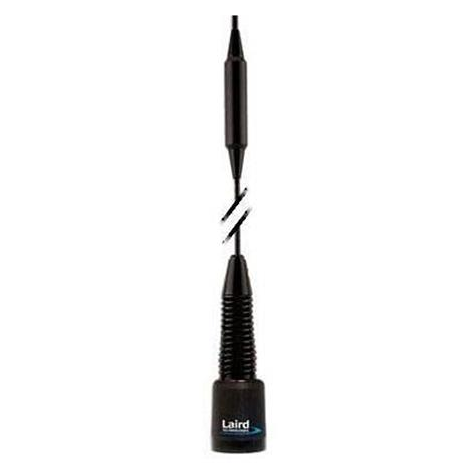

Laird TE Connectivity BB4505CNS

UHF 450-470 MHz 5/8 Wave 5db Gain Mobile Antenna - No Ground Plane Required - Black - Spring Base

$129⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Specs

TE CONNECTIVITY BB4505CNS DATASHEET SPECIFICATIONS

Description

Manufacturer

TE Connectivity

Model #

BB4505CNS

Product Description

450-470 MHz Antenna, No ground plane, 5/8 wave base loaded antenna. Molded high heat ABS mounting base features silver soldered connections, gold plated push pin contacts and O-ring.

Frequency (MHz)

450-470

Usable Bandwidth

20 MHz

Gain (dB)

5

Maximum Power (Watts)

200

Whip Length

31 in

Whip Material

17-7ph tapered stainless steel

Mount Type

NMO

Warranty

5 Year
