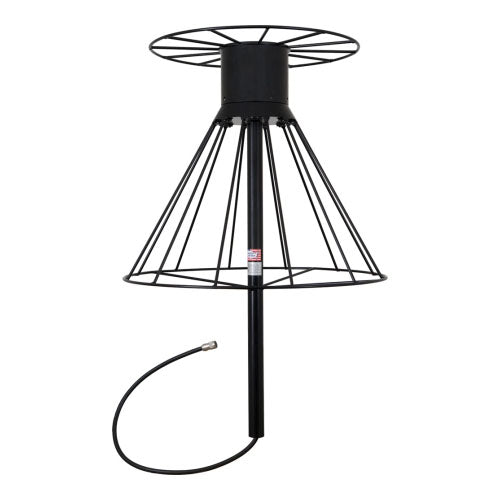

TeleWave ANT280S-DIN
Regular price
$3,63695
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
Description
Description
Product Description
118-3000 MHz Unity Gain Discone Antenna
Narrative
Rugged, 118-3000 MHz wideband antenna for interoperable communications. Fully protected with Txylan coating.
Bandwidth >1.5 VSWR
1.5:1 or less
Gain (dB)
Unity
General Frequency (MHz)
118 - 3000
Nominal Impedance (Ohms)
50
Direct Termination
7/16 DIN Male
Maximum Power Input (Watts)
150
Lightning Protection
DC Ground
Overall Length
43" H x 28.5" W
Specific Frequency (MHz)
118 - 3000
Vertical Beamwidth (Deg)
110 Deg.
Lateral Thrust @ RWV (lb)
36
Rated Wind Velocity (RWV, MPH)
150 / 100
Weight (lb)
11
Mount Hdw. Incl.
Not Included.
Flat Plate Area (Sq. Ft)
0.89
Wind Load (sq-ft)
0.89 sq ft.
Mfg. Warranty
5 Years
