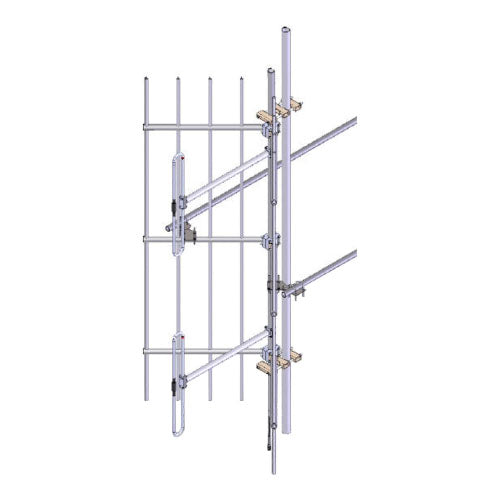

Sinclair Technologies SD212R-SF2P90LDF(D00S)
Regular price
$6,69995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
Description
Description
Manufacturer
Sinclair Technologies
Product Description
138-174 MHz 2 Dipole Low PIM Reflector Antenna
Product Narrative
SINCLAIR's SD212R-SF2P90LDF(D00S) is a rugged exposed dipole antenna with corner reflector which covers the entire 138 – 174 MHz range. It is an excellent antenna for multicoupling several systems or for use with widely spaced duplex frequencies. The antenna has 90 deg. horizontal beamwidth for VHF simulcast applications. The unique design allows for low passive intermodulation.
Specific Freq. (MHz)
138-174 MHz
Maximum VSWR: 1.5:1
Item Width: 28 in
RF Connectors: 7/16 DIN Female
Item Length: 54 in
Polarization: Vertical
Gain dBi: 10.6 dBi
Item Weight: 79 lb
Gain dBd: 8.5 dBd
Maximum Rated Wind Velocity: 155 MPH
Vertical Beamwidth: 36 deg
Horizontal Beamwidth: 90 deg
Item Height: 120 in
Maximum Power: 300 W
Lightning Protection: DC Ground
Item Width: 28 in
RF Connectors: 7/16 DIN Female
Item Length: 54 in
Polarization: Vertical
Gain dBi: 10.6 dBi
Item Weight: 79 lb
Gain dBd: 8.5 dBd
Maximum Rated Wind Velocity: 155 MPH
Vertical Beamwidth: 36 deg
Horizontal Beamwidth: 90 deg
Item Height: 120 in
Maximum Power: 300 W
Lightning Protection: DC Ground
