TeleWave ANT150D3-8DT
MPN ANT150D3-8DTSKU 10043Product type Base Antenna
Regular price
$1,72954
Unit price
Ships Separately: this item requires its own package
Key Specifications
- Antenna Design
- Dipole
- Frequency
- 138-174 MHz
- Bands
- Single Band
- Gain
- High Gain (6-9 dBi)
- Connector Type
- N Male
Product details
Manufacturer
TeleWave, Inc.
Product Description

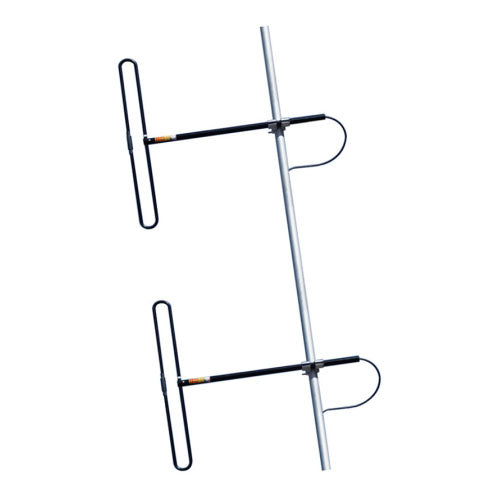

138-174 MHz 3dB 2 Element Dipole,8 Degree Downtilt
Product Narrative
TELEWAVE's ANT150D3-8DT 138 – 174 MHz 2 bay exposed dipole array. Adjustable pattern, 3 dB omni / 5.6 dB offset, 500 W. Includes harness with N Male termination.
Specific Freq. (MHz)
138-174 MHz
Antenna Pattern: Adjustable
Gain dBd: 3 dBd, 6 dBd
Lightning Protection: DC Ground
Maximum Rated Wind Velocity: 175 MPH
Vertical Beamwidth: 37 deg
Gain dBi: 5.1 dBi, 8.1 dBi
RF Connectors: N Male
Maximum VSWR: 1.5:1
Polarization: Vertical
Maximum Power: 500 W
Connector Placement: Pigtail
Gain dBd: 3 dBd, 6 dBd
Lightning Protection: DC Ground
Maximum Rated Wind Velocity: 175 MPH
Vertical Beamwidth: 37 deg
Gain dBi: 5.1 dBi, 8.1 dBi
RF Connectors: N Male
Maximum VSWR: 1.5:1
Polarization: Vertical
Maximum Power: 500 W
Connector Placement: Pigtail
