Sinclair Technologies SD214-SF2P2LDF(D00)
Regular price
$3,89995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
Description
Description
Manufacturer
Sinclair Technologies
Product Description
138-174 MHz 4 Dipole, 7 dBd, Bi-Directional
Product Narrative

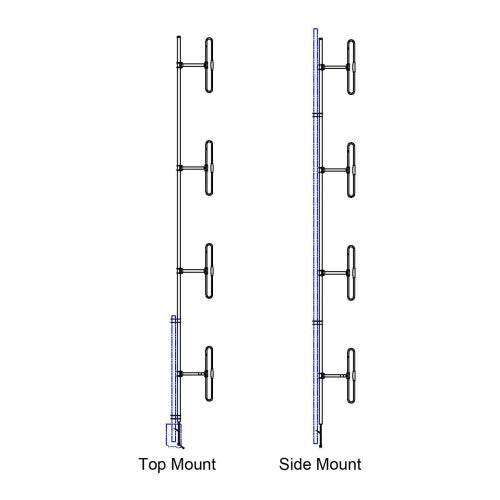

SINCLAIR's SD214-SF2P2LDF(D00) 138 – 174 MHz, 4 dipoles, 7.0 dBd, bidirectional, low PIM antenna, 300 W power, can be top or side-mounted.
Specific Freq. (MHz)
138-174 MHz
Maximum VSWR: 1.5:1
Item Width: 42 in
RF Connectors: 7/16 DIN Female
Item Length: 3.5 in
Polarization: Vertical
Item Weight: 63.0 lb
Gain dBd: 7 dBd
Maximum Rated Wind Velocity: 125 MPH
Vertical Beamwidth: 18 deg
Antenna Pattern: Bidirectional
Item Height: 240 in
Maximum Power: 300 W
Lightning Protection: DC Ground
Item Width: 42 in
RF Connectors: 7/16 DIN Female
Item Length: 3.5 in
Polarization: Vertical
Item Weight: 63.0 lb
Gain dBd: 7 dBd
Maximum Rated Wind Velocity: 125 MPH
Vertical Beamwidth: 18 deg
Antenna Pattern: Bidirectional
Item Height: 240 in
Maximum Power: 300 W
Lightning Protection: DC Ground
