MPN: ANT150D6-9DIN
BRAND: TeleWave inc
PRODUCT TYPE: Base Antenna
SKU: 10047

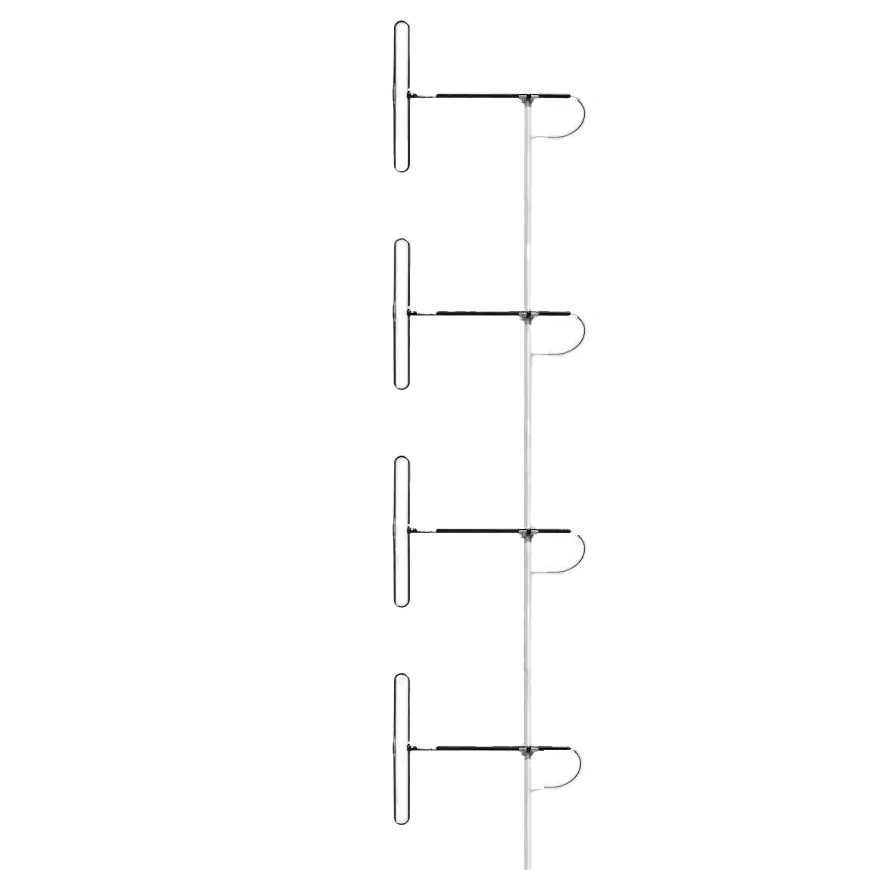

TeleWave ANT150D6-9DIN

138-174 MHz 4 Bay Dipole Antenna. Gain (dB) 6 - 9, Direct Termination 7/16 DIN Male on Harness, Overall Length 195"

$3,101⁹⁵

Shipping calculated at checkout.

Ships Separately: this item requires its own package

DOCUMENTS

Specs

Description

Manufacturer

Telewave, Inc.

Model #

ANT150D6-9

Product Description

138-174 MHz 4 Bay Dipole

Product Narrative

Two bay, folded dipole antenna. Txylan coated. Full 36 MHz of bandwidth. Optional 1-15 deg. electrical downtilt. Support mast not included.

Specific Freq. (MHz)

138-174 MHz

Gain (dB)

6 - 9

Maximum Input Power (Watts)

500

Bandwidth >1.5 VSWR

36

Vert. Beamwidth (-3dB)

18 Deg

Lightning Protection

DC Ground

Direct Termination

7/16 DIN Male

Overall Length

195"

Support Pipe Dia.

2.0" pipe, not supplied

Wind Load, (sq ft)

3.3 at 100 MPH

Rated Wind Velocity (MPH)

175 MPH

Weight

28 Lbs.

Mount Hdw. Incl.

Clamp set for each element

Warranty

5 Years
