Sinclair Technologies SY250-HF2SNM(U)
Regular price
$89995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
Description
Description
Manufacturer
Sinclair Technologies
Product Description

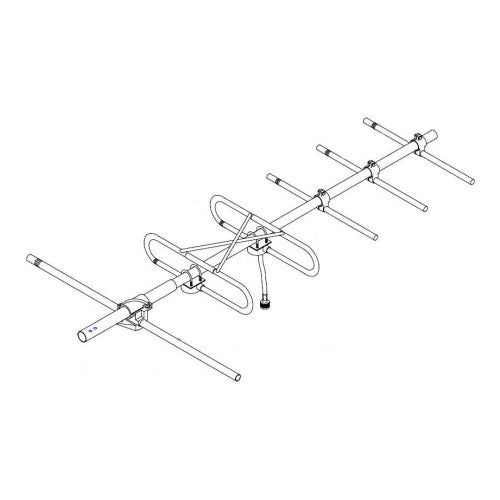

138-174 MHz 8dBd 6 Element Yagi Antenna
Product Narrative
SINCLAIR's SY250-HF2SNM(U) 138 – 174 MHz 6 element Yagi. 200 W. N Male connector.
Specific Freq. (MHz)
138-174 MHz
Connector Placement: Pigtail
Vertical Beamwidth: 60 deg
Lightning Protection: DC Ground
Item Width: 5 in
Item Weight: 15.1 lb
Gain dBi: 10.1 dBi
Item Length: 108 in
RF Connectors: N Male
Maximum VSWR: 2.0:1
Item Height: 42 in
Maximum Power: 200 W
Polarization: Linear
Horizontal Beamwidth: 80 deg
Gain dBd: 8 dBd
Vertical Beamwidth: 60 deg
Lightning Protection: DC Ground
Item Width: 5 in
Item Weight: 15.1 lb
Gain dBi: 10.1 dBi
Item Length: 108 in
RF Connectors: N Male
Maximum VSWR: 2.0:1
Item Height: 42 in
Maximum Power: 200 W
Polarization: Linear
Horizontal Beamwidth: 80 deg
Gain dBd: 8 dBd
