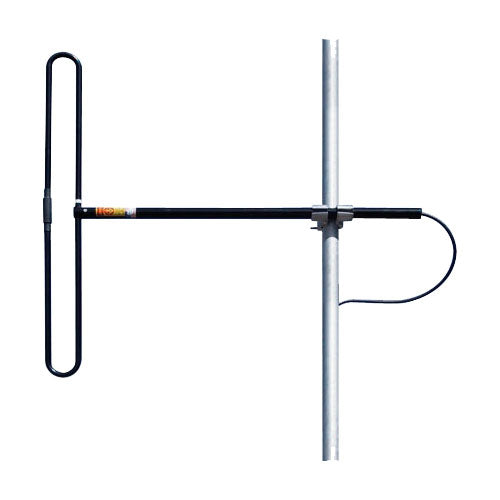

TeleWave ANT150D3-2DT
MPN ANT150D3-2DTSKU 10075Product type Base Antenna
Regular price
$2,24346
Unit price
Ships Separately: this item requires its own package
Key Specifications
- Antenna Design
- Dipole
- Frequency
- 138-174 MHz
- Bands
- Single Band
- Gain
- High Gain (6-9 dBi)
- Connector Type
- N Male
Product details
Manufacturer
TeleWave, Inc.
Product Description
138-174MHz 3dB 2 Element Dipole, 2 Degree Downtilt
Product Narrative
TELEWAVE's 138 – 174 MHz two-bay exposed dipole array. Adjustable pattern, 3 dB omni / 5.6 dB offset, 500 W. Includes harness with N Male termination. Mast not included. 2 deg. downtilt.
Specific Freq. (MHz)
138-174 MHz
Gain dBd: 3 dBd, 6 dBd
Lightning Protection: DC Ground
Maximum Rated Wind Velocity: 175 MPH
Gain dBi: 5.1 dBi, 8.1 dBi
RF Connectors: N Male
Maximum VSWR: 1.5:1
Polarization: Vertical
Maximum Power: 500 W
Connector Placement: Pigtail
Lightning Protection: DC Ground
Maximum Rated Wind Velocity: 175 MPH
Gain dBi: 5.1 dBi, 8.1 dBi
RF Connectors: N Male
Maximum VSWR: 1.5:1
Polarization: Vertical
Maximum Power: 500 W
Connector Placement: Pigtail
