Sinclair Technologies SD210R-SF2P60LDF(S)
Regular price
$3,69995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
Description
Description
Manufacturer
Sinclair Technologies
Product Description

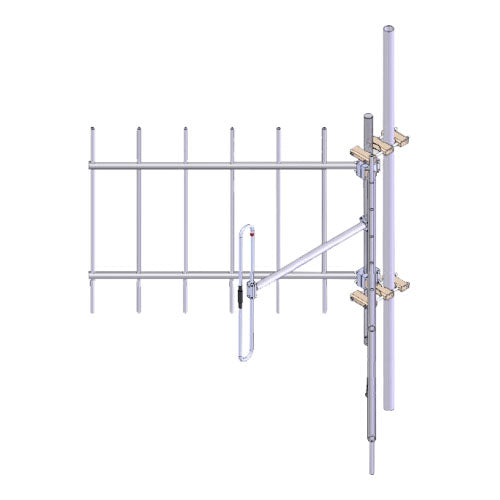

138-174MHz Low PIM VHF Reflector Antenna
Product Narrative
SINCLAIR's SD210R-SF2P6LDF(S) 138 – 174 MHz, low PIM, VHF reflector, 60 deg. beamwidth, 7/16 DIN Female connector.
Specific Freq. (MHz)
138-174 MHz
Maximum Rated Wind Velocity: 155 MPH
Item Length: 45 in
Maximum VSWR: 1.5:1
Antenna Pattern: Directional
RF Connectors: 7/16 DIN Female
Polarization: Vertical
Item Weight: 49 lb
Horizontal Beamwidth: 60 deg
Item Height: 60 in
Gain dBd: 7 dBd
Item Width: 87.5 in
Maximum Power: 300 W
Lightning Protection: DC Ground
Connector Placement: Side
Item Length: 45 in
Maximum VSWR: 1.5:1
Antenna Pattern: Directional
RF Connectors: 7/16 DIN Female
Polarization: Vertical
Item Weight: 49 lb
Horizontal Beamwidth: 60 deg
Item Height: 60 in
Gain dBd: 7 dBd
Item Width: 87.5 in
Maximum Power: 300 W
Lightning Protection: DC Ground
Connector Placement: Side
