Product Description
870-965 MHz Fiberglass Collinear Antenna, 6 dBd
Narrative

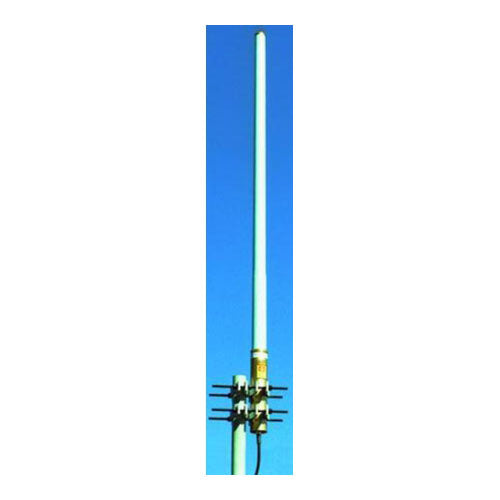

The Telewave ANT940F6 is an extremely rugged, medium gain, fiberglass collinear antenna, designed for operation in all environmental conditions. The antenna is constructed with brass and copper elements, connected at DC ground potential for lightning impulse protection. All junctions are fully soldered to prevent RF intermodulation, and each antenna is completely protected within a rugged, high-tech radome to ensure survivability in the worst environments.
Maximum VSWR
1.5:1
Gain (dBi)
6.1
General Frequency (MHz)
870-965
Gain (dBi)
4.65
Connector Placement
Bottom
Connector (direct)
N Female
Polarization
Vertical
Maximum Power Input (Watts)
500
Size (L x W x H)
56" x 3" x 3''
Maximum VSWR
1.5:1
Weight (lb)
18 Lbs
Rated Wind Velocity (MPH)
200
