Motorola BPR40D (Digital)
Regular price
$27995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Brochure
Description
Description
Radio Includes:
- 1500mAh Li-ion Battery (PMNN4075AR)
- Tri-chemistry Rapid Charger (PMPN4171)
- Antenna (PMAD4051_R)

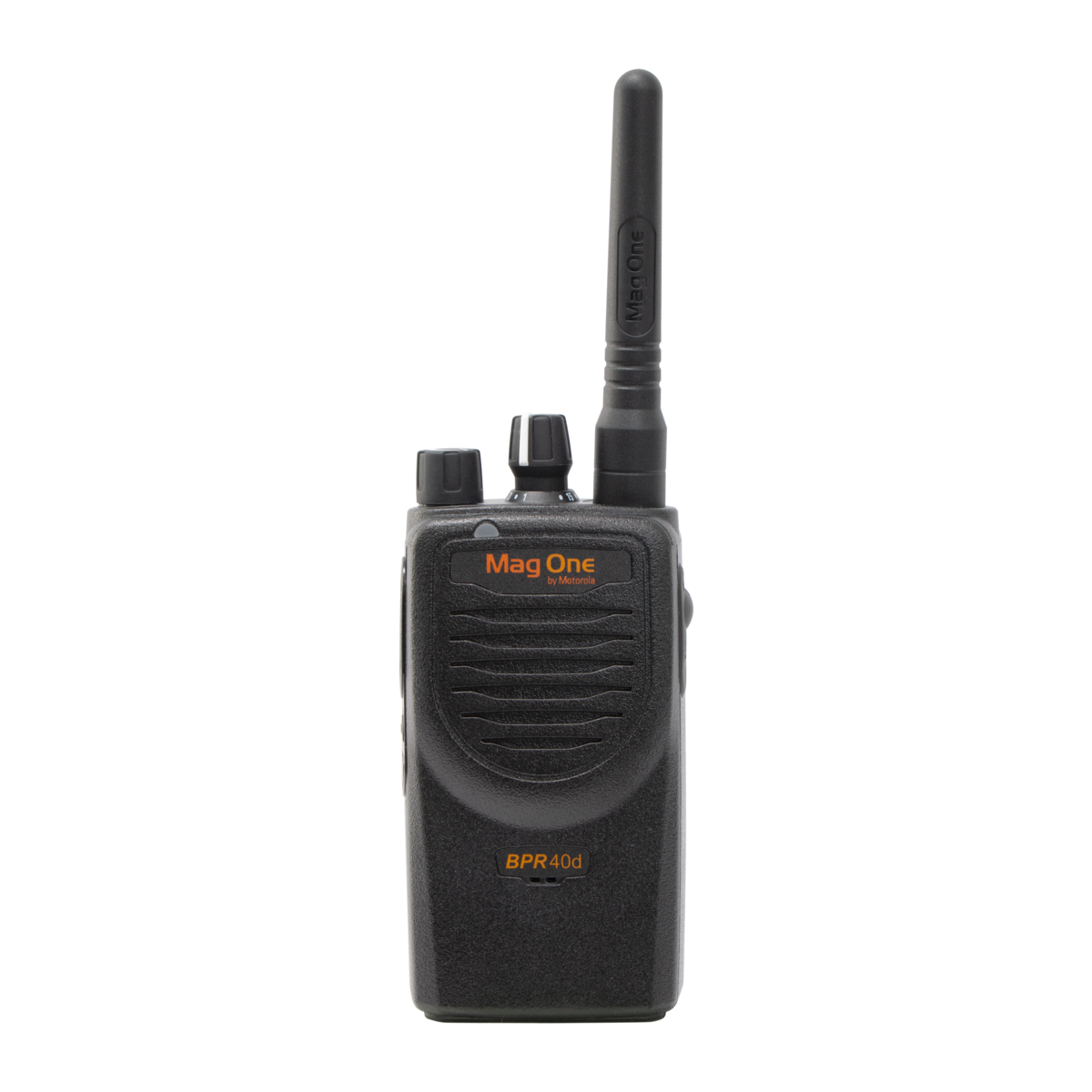

Mag One by Motorola BPR40D
Affordable and Reliable Radio for Small Business
The Mag One by Motorola BPR40d digital radios deliver the reliable communications you and your staff
need. Lightweight and powerful, each radio is built to ensure that you are never out of reach. Long battery
life means continued communication that lasts an entire shift. Rugged, water-resistant construction offers
worry-free operation, while the radios’ long warranties bring peace of mind.
Both radios support analog communications for simple, familiar push-to-talk voice connections. The BPR40d radio also supports the Digital Mobile Radio (DMR II) communications standard, giving you more range and clear,
static-free voice connections, even at the edge of your radio coverage.
Features
Group communication
Communicate to all radios in a predefined group of radio users.
Programmable buttons
Program up to four settings from these features:
Communicate to all radios in a predefined group of radio users.
Programmable buttons
Program up to four settings from these features:
• High/Low Power
• Volume Set
• Monitor
• Sticky Monitor
• Scan
• Nuisance Channel Delete
• Repeater Talkaround
• PL/DPL
• Button Lock
• Battery Save Mode
• Squelch
• Private, Group, or All-Call (BPR 40d only)
Diecast chassis
Polycarbonate housing helps protect your radio from everyday bumps and falls. Both radios are protected against splashing water (IPx4), while the BPR40d is also protected against dust (IP54).
Adjustable power level
Set high transmit power when you need to extend your reach, then lower it to maximize battery life.
Squelch Levels
Helps minimize interference from undesired weak signals and helps weak signals be heard.
Large, Textured Push-to-Talk Button
Easy to find and use without looking
Priority Scan
Frequently check for signals on high-priority channels
Large Channel Knob
Change channels easily and stay focused on your work.
Diecast chassis
Polycarbonate housing helps protect your radio from everyday bumps and falls. Both radios are protected against splashing water (IPx4), while the BPR40d is also protected against dust (IP54).
Adjustable power level
Set high transmit power when you need to extend your reach, then lower it to maximize battery life.
Squelch Levels
Helps minimize interference from undesired weak signals and helps weak signals be heard.
Large, Textured Push-to-Talk Button
Easy to find and use without looking
Priority Scan
Frequently check for signals on high-priority channels
Large Channel Knob
Change channels easily and stay focused on your work.
Performance Characteristics
-
Estimated battery life 15 hours (high power - 5W); 12 hours (low power - 1W)
-
Standard battery chemistry type Nickel Metal Hydride
-
Frequency range UHF: 450-470 MHz
-
1 Watt Yes
-
Frequency band VHF, UHF
-
Adjustable power levels Yes
-
Coverage area Programming Software allows adjustable power output for varying coverage
-
Power 1W/5W (VHF)
-
Repeater capable Yes
Physical Characteristics
-
Display No Display
-
Keypad None
-
Weight (with standard battery) 12.3 oz.
-
Emergency button None
-
Dimensions H x W x L (with standard battery) 4.2 x 2.3 x 1.5 in.
Radio Features
-
Number of channels 16
-
Private Line apabilities
-
CPS (Customer Programming Software) Yes
-
Cloning With cable
-
Programmable buttons Yes
-
Digital Private Line 83
User Environment
-
Mil spec 810 C, 810 D, 810 E, 810 F
Warranty
-
Standard warranty 1 year
-
Standard package NiMH rechargeable battery, 6 hour mid-rate charger, antenna, spring belt clip, operating instruction manuals, one-year limited radio warranty
