Product Description

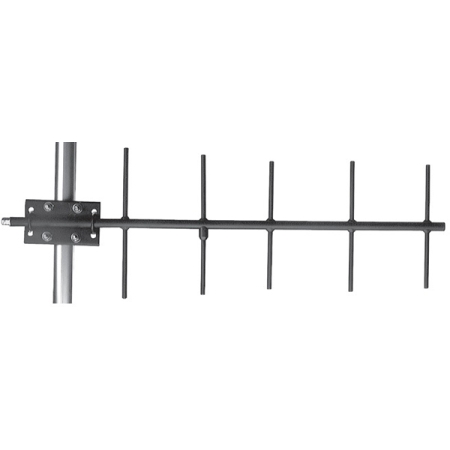

902-960 10dB 5 Element Yagi Antenna
Narrative
PCTEL's BMOY9006 black Yagi antenna has been optimized to achieve superior performance over the entire 900 MHz and UHF frequency bands. This 902 – 960 MHz directional Yagi serves as a non-cellular directional base station. The 5-element antenna provides 10 dBd gain and has a maximum power input of 150 W. The BMOY9006 is terminated with an N Female connector and is supplied with the MYK17 mast mount bracket. Maximum mounting pipe…
Specific Frequency
902-960 MHz
RF Connectors
N Female
Connector Placement
Bottom
Lightning Protection
DC Ground
Vertical Beamwidth
45 deg
Polarization
Linear
Maximum Power
150 W
Gain dBd
10 dBd
Maximum Rated Wind Velocity
200 mile/h
Manufacturer
PCTEL
Qty/ Uom
1 Each
Maximum VSWR
1.5:1
