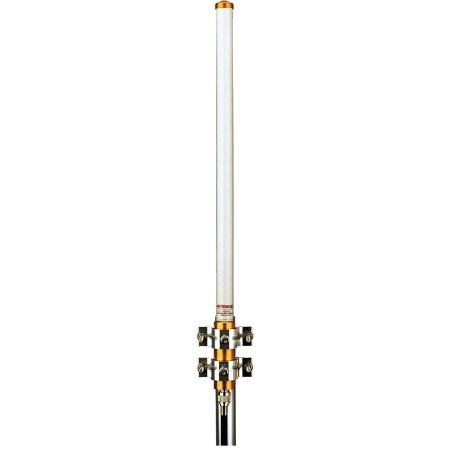

Laird TE Connectivity FG1520
MPN FG1520SKU 1055Product type Base Antenna
Regular price
$21995
Unit price
Key Specifications
- Antenna Design
- Omnidirectional
- Frequency
- 152-156 MHz
- Bands
- Single Band
- Gain
- Low Gain (0-3 dBi)
- Connector Type
- N Female
Product details
Manufacturer
TE Connectivity
Model #
FG1520
Product Description
Fiberglass Enclosed Copper Element
Product Narrative
Economical fiberglass omnidirectional unity gain. Gold anodized support pipe
Specific Freq. (MHz)
152-156 MHz
Gain (dB)
Unity
Maximum Input Power (Watts)
250
Bandwidth >1.5 VSWR
Varies
Vert. Beamwidth (-3dB)
75 Deg.
Lightning Protection
DC Ground
Direct Termination
N Female
Overall Length
68"
Rated Wind Velocity (MPH)
125 MPH
Support Pipe Dia.
1 1/4"
Weight
4 Lbs.
Mount Hdw. Incl.
Requires FM2 Brackets
Warranty
5 Year
