Product Description
900 MHz Vertical Omnidirectional 6dBi gain Antenna
Narrative

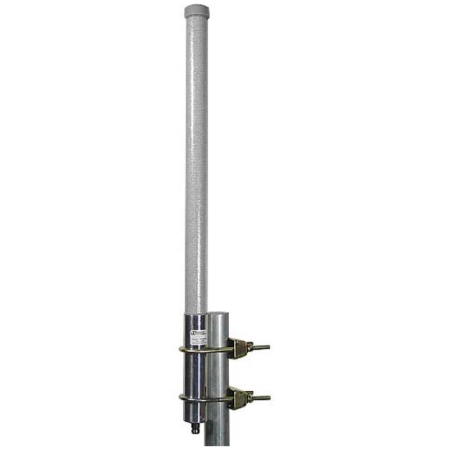

The HyperLink HG906U-PRO is a high performance omnidirectional antenna designed for the 900 MHz ISM band. It is ideally suited for multipoint, Non Line of Sight (NLOS) and mobile applications where high gain and wide coverage is desired. Typical applications include 900 MHz Wireless LAN, SCADA, wireless video links and 900 MHz cellular band applications.
This antenna features an integral N Female type connector that mounts through the wall of an equipment enclosure. Included with the HG906U-PRO is a dual U-bolt mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0 in in diameter.
This omni antenna's construction features a rugged 1.58 in diameter fiberglass radome for durability, aesthetics and long service life. It is designed for all-weather operation.
This antenna features an integral N Female type connector that mounts through the wall of an equipment enclosure. Included with the HG906U-PRO is a dual U-bolt mast mounting kit. Consisting of a heavy-duty steel bracket and a pair of U-bolts, this kit allows installation on masts up to 2.0 in in diameter.
This omni antenna's construction features a rugged 1.58 in diameter fiberglass radome for durability, aesthetics and long service life. It is designed for all-weather operation.
Special Features:
- Rugged industrial grade design
- Lightweight fiberglass radome
- All-weather operation
- Integral N Female connector
- Includes heavy-duty steel mast mounting brackets
Applications:
- 900 MHz ISM band
- 900 MHz wireless video
- Point to multi-point and Non Line Of Sight (NLOS) applications
- GSM, SCADA applications
- 900 MHz cellular band
Manufacturer
L-Com Connectivity Product
RF Connectors
N Female
Qty/ Uom
1 Each
Item Width
1.5 in
Maximum Power
50 W
Item Weight
3.86 lb
Specific Frequency
900-928 MHz
Item Length
1.5 in
Maximum VSWR
1.5:1
Maximum Rated Wind Velocity
130 mile/h
Item Height
38.1 in
