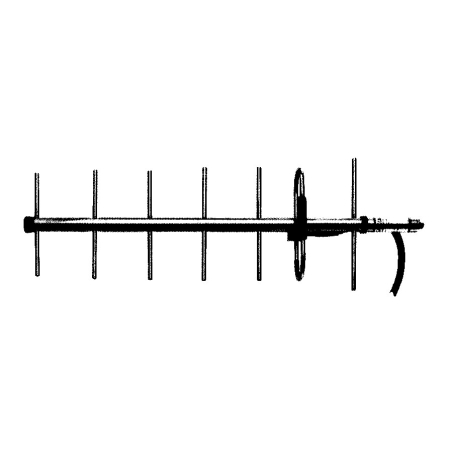

895-966 MHz 10dBd 6 Element Yagi Antenna
Narrative
SINCLAIR's SY406-SF4SNF directional Yagi antenna operates in the 895 – 966 MHz frequency ranges. This six-element antenna has a gain of 10 dBd with a maximum power input of 125 W. A jumper with N Female connector is included along with the mounting hardware #115 clamp set.
The Sinclair Yagi antenna can be mounted either vertically or horizontal. This broadband antenna is designed for high performance, versatility, and ease of installation.
The Sinclair Yagi antenna can be mounted either vertically or horizontal. This broadband antenna is designed for high performance, versatility, and ease of installation.
Item Height
2.6 in
Tuned Frequency (MHz)
895-966
Item Width
7.1 in
Maximum Rated Wind Velocity
150 mile/h
Item Length
24 in
RF Connectors
N Female
Type of Hardware Included
Clamp115
Jumper Included
Yes
Gain dBi
12.15 dBi
Qty/ Uom
1 Each
Lightning Protection
DC Ground
Item Weight
1.1 lb
Vertical Beamwidth
45 deg
Connector Placement
Pigtail
Maximum VSWR
1.5:1
Specific Frequency
895-966 MHz
Gain dBd
10 dBd
Polarization
Linear
Maximum Power
125 W
