Product Description

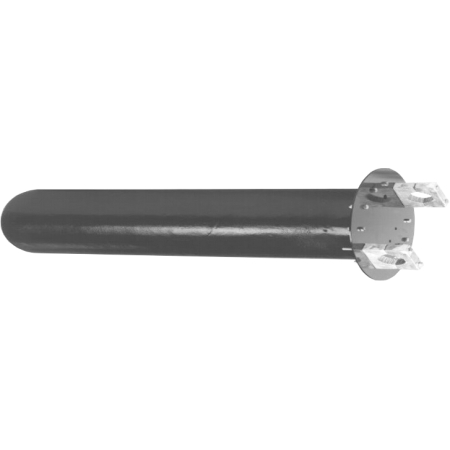

902-956 MHz Yagi Antenna, Radome Enclised
Narrative
SINCLAIR's SY415R-HFXSNM 902 – 956 MHz Yagi antenna, 12 dBd, radome enclosed. The SY415R series of Yagi antennas has been developed to meet the need for a high gain, relatively wide-band antenna in the 902 – 956 MHz range. Designed for superior performance and versatility, this Yagi fills a variety of application needs. It is also enclosed within a radome to offer greater resistance to harsh environments.
Gain dBd
12 dBd
Polarization
Vertical, Horizontal
Horizontal Beamwidth
42 deg
Manufacturer
Sinclair Technologies
Lightning Protection
DC Ground
Antenna Pattern
Directional
Specific Frequency
902-956 MHz
Maximum VSWR
1.5:1
Maximum Power
125 W
RF Connectors
N Male
Item Height
34.13 in
Item Width
11.5 in
Maximum Rated Wind Velocity
195 mile/h
Item Length
11.5 in
Gain dBi
1.5:1
Qty/ Uom
895-966 MHz
Gain dBd
14.1 dBi
Qty/ Uom
1 Each
Item Weight
7.5 lb
