Laird TE Connectivity YS8966

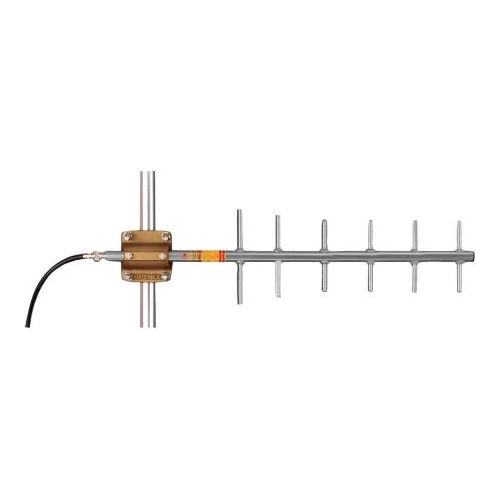

LAIRD's YS8966 Yagi antenna is part of the TE Connectivity Silver series VHF models. The Silver series feature the same great optimized designs and plated brass connectors as the welded gold-anodized models. This Yagi antenna operates in the 896 – 970 MHz frequency range. The YS8966 Yagi is a six-element antenna with 9 dBd gain with a maximum power input of 300 W. The Yagi is terminated with an N Female connector and includes 1 5/8 in stainless steel U-bolts for mounting.

Side

N Female

1 Each

9 dBd

1.5:1

11.15 dBi

Linear

No

TE Connectivity, Inc.

N/A

3 lb

300 W

27.75 in

100 mile/h

U-Bolts

DC Ground

896-970 MHz

5 Year
