Product Description

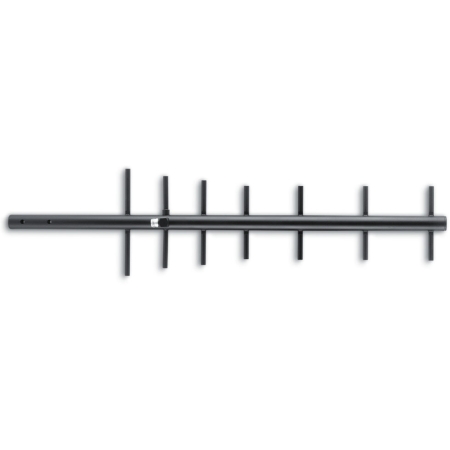

890-960MHz 11dBi 7 Element Yagi Antenna
Narrative
LARSEN's YA5900W Yagi directional antenna is designed for high performance and long life in the most demanding applications. Larsen's black-finished welded Yagi directional antenna is a seven-element antenna with 11 dBi directional gain and operates within a frequency range 890 – 960 MHz. The maximum power input is 300 W and the antennas is terminated with an N Female connector. Stainless steel U-bolt mounting hardware for pipes up to 1 5/8 in is included and makes installation easy.
This Yagi antenna uses a rugged, fully-welded design that is strengthened by aluminum alloys and completely weatherized.
This Yagi antenna uses a rugged, fully-welded design that is strengthened by aluminum alloys and completely weatherized.
Qty/ Uom
1 Each
Maximum VSWR
2.0:1
Polarization
Linear
Lightning Protection
DC Ground
Maximum Power
300 W
Maximum Rated Wind Velocity
100 mile/h
Manufacturer
Pulse / Larsen Antennas
Tuned Frequency (MHz)
N/A
Jumper Included
No
Horizontal Beamwidth
45 deg
Item Length
34 in
Type of Hardware Included
U-Bolts
Gain dBd
9 dBd
Connector Placement
Center
Item Height
4 in
Specific Frequency
890-960 MHz
RF Connectors
N Female
Item Weight
1.25 lb
Vertical Beamwidth
45 deg
Item Width
10 in
Gain dBi
11.2 dBi
