Product Description
1568-1618 MHz GPS Antenna, 28 dB gain
Product Narrative

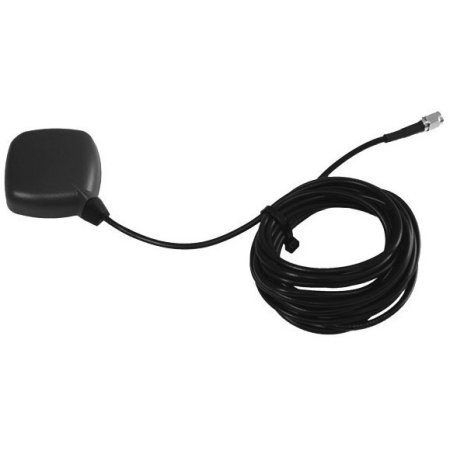

PCTEL's 8117D GPS L1/GLONASS antenna is a high performance antenna with a wide voltage range, ideally suited to telematics platforms for use in vehicle mounted applications. With a wideband patch, this antenna was designed to operate at GPS L1 as well as GLONASS L1 frequencies. Using internal magnets or screw mount holes, the antenna can be installed almost anywhere on a vehicle allowing for greater flexibility. The 8117D antenna features 28 dB gain low noise amplifier and a saw filter. With 2.7 – 5 V operation, the antenna can be used with the vast majority of GPS L1 and GLONASS systems available.
Maximum VSWR
1.5:1
Gain dBiC
3 dBiC
Polarization
Right Circular
Manufacturer
PCTEL
RF Impedance
50 Ohms
Item Length
2.05 in
Frequency
1575.42 MHz
DC Voltage
2.5-5.0 V
Item Weight
0.26 lb
Item Height
0.54 in
Amplifier Gain
28 dB
Item Width
2.33 in
