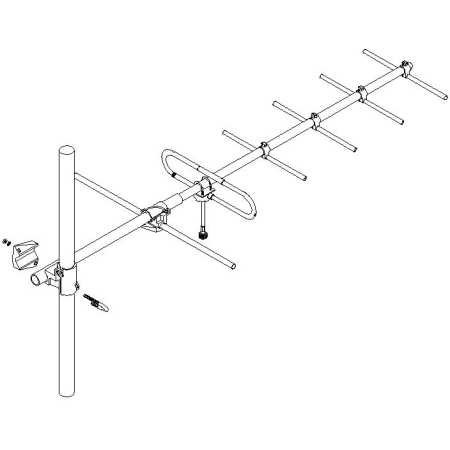

Sinclair SY206-SF3SNM(E)
Regular price
$73995
Unit price
Shipping calculated at checkout.
Freight: this item requires LTL shipping
Description
Description
Product Description
157-164 9.5dB Yagi
Narrative
SINCLAIR's 157 – 164 MHz six-element Yagi. 9.5 dB gain, 250 W. Includes mounting hardware. Short jumper with N Male.
Maximum VSWR
1.5:1
Type of Hardware Included
U-bolts
Specific Frequency
138-174 MHz
Type of Jumper Included
Not Specified
Vertical Beamwidth
47 deg
Tuned Frequency (MHz)
157-164
Item Length
113.38 in
RF Connectors
N Male
Item Height
42 in
Maximum Power
250 W
Maximum Rated Wind Velocity
135
Horizontal Beamwidth
60 deg
Manufacturer
Sinclair Technologies
Item Width
6.1 in
Lightning Protection
DC Ground
Item Weight
12 lb
