Product Description

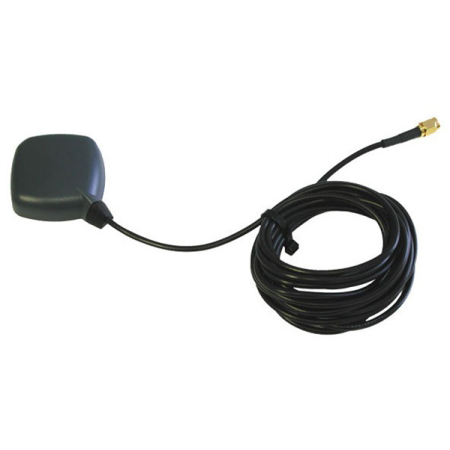

1574-1610 MHz High Rejection GPS Antenna
Product Narrative
PCTEL's 8111D-HR antenna is a dual band, high rejection antenna covering both the GPS L1 and GLONASS L1 frequencies. PCTEL's proprietary SkyLink (TM) filtering design allows wideband coverage while achieving superior out-of-band rejection. This antenna is ideal for any global GPS/GLONASS tracking application that requires an externally mounted antenna. Using internal magnets or screw mount holes, the antenna can be installed almost anywhere on a vehicle allowing for greater flexibility.
DC Voltage
2.8-6.2 V
Item Height
0.47 in
Item Width
2.01 in
Maximum VSWR
1.5:1
Gain dBiC
3 dBiC
Item Weight
0.26 lb
Frequency
1575.42 MHz
Manufacturer
PCTEL
RF Impedance
50 Ohms
Item Length
1.77 in
Polarization
Right Circular
Amplifier Gain
26 dB
