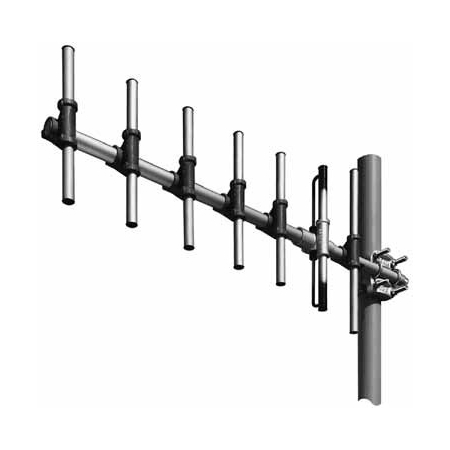

Kathrein Broadcast CA7-460
MPN CA7-460SKU 10649Product type Base Antenna
Regular price
$98088
Unit price
Ships Separately: this item requires its own package
Documents
Key Specifications
- Antenna Design
- Yagi
- Frequency
- 450-470 MHz
- Bands
- Single Band
- Gain
- Extreme Gain (12+ dBi)
- Connector Type
- N Female
Product details
Product Description
450-470 12dBi 7 Element Yagi Antenna
Product Narrative
450 – 470 MHz broadband Yagi antenna 12dBi gain, 250 W, 14 dB F/B ratio. Vertical or horizontal polarization. N Female termination. Includes mounting hardware.
Maximum Power
250 W
Vertical Beamwidth
41 deg
Item Height
14.9 in
Manufacturer
Kathrein Broadcast USA Inc
Polarization
Linear
Horizontal Beamwidth
53 deg
Item Length
39.9 in
Tuned Frequency (MHz)
450-470
RF Connectors
N Female
Gain dBd
10 dBd
Gain dBi
12 dBi
Lightning Protection
DC Ground
Maximum Rated Wind Velocity
120 mile/h
Maximum VSWR
1.35:1
Type of Hardware Included
U-Bolts for 2.375" OD pipe
Item Weight
6.5 lb
Specific Frequency
450-470 MHz
