Product Description

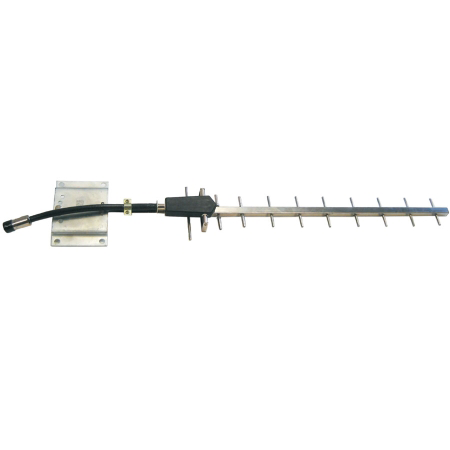

1710-1990MHz 10dBi 11 Element Yagi Antenna
Product Narrative
WESTELL's CSIAY1.85-1.99/10 is a Yagi antenna in the 1710 – 1990 MHz frequency range. This PCS Yagi antenna features 10 dBi gain, 11 elements, and is both rugged and lightweight. The antenna elements are hermetically sealed. The Yagi antenna can be either vertically or horizontally polarized. The maximum power input is 200 W. The CSI Yagi antenna has a short pigtail terminated with an N Female connector. Antenna mounting hardware includes U-bolts that fit 1 7/8 in OD pipe.
The Westell 1900 MHz Yagi antenna is great for use with the indoor BDA units by Westell.
The Westell 1900 MHz Yagi antenna is great for use with the indoor BDA units by Westell.
Polarization
Linear
Item Weight
1 lb
Horizontal Beamwidth
38 deg
Item Height
1.5 in
Item Width
4 in
Maximum Rated Wind Velocity
120 mile/h
Type of Jumper Included
Pigtail
Vertical Beamwidth
36 deg
Connector Placement
Pigtail
Gain dBd
8 dBd
Maximum Power
200 W
Item Length
28 in
Type of Hardware Included
U-Bolts
Gain dBi
10 dBi
Jumper Included
Yes
Maximum VSWR
1.5:1
RF Connectors
N Female
Lightning Protection
DC Ground
Manufacturer
Westell, Inc.
Specific Frequency
1850-1990 MHz
