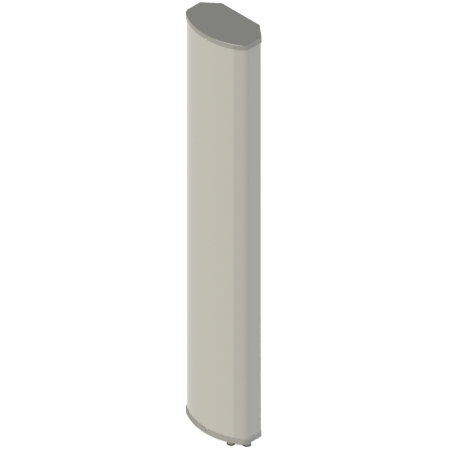

Amphenol ProComm CWX063X19G00
Regular price
$3,23995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Product Description
696-960/1710-2170 MHz Dual Band VET Panel Antenna
Product Narrative
AMPHENOL's 696 – 960 / 1710 – 2170 MHz dual-band VET panel antenna CWX063X19G00. RET AISG v2.0 / 3GPP. Four (4) 7/16 DIN Female connectors.
Manufacturer
Amphenol Antenna Solutions
RF Connectors
7/16 DIN Female
Polarization
+/- 45 Degrees
Item Height
7 in
Variable Electrical Downtilt
0-10 deg, 0-12 deg
Connector Placement
Bottom
Item Weight
33.7 lb
Electrical Downtilt
Variable
Item Width
12.1 in
Horizontal Beamwidth
70 deg, 65 deg, 70 deg, 67 deg, 66 deg
Maximum VSWR
1.5:1
Gain dBi
14.3 dBi, 15.2 dBi, 16.4 dBi, 17.0 dBi, 17.3 dBi
Minimum Front Back Ratio
27 dB
Maximum Rated Wind Velocity
150 mile/h
Lightning Protection
DC Ground
Item Length
75 in
Specific Frequency
696-960 MHz, 1710-2170 MHz
Maximum Power
500 W, 250 W
