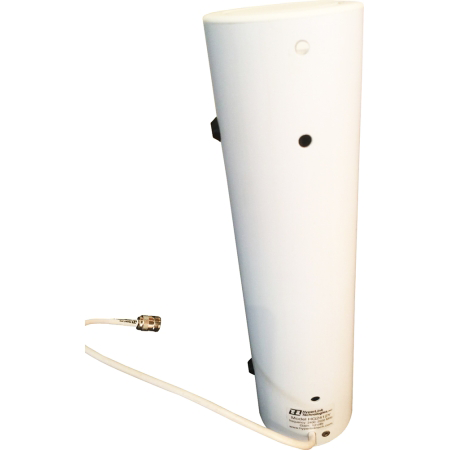

2.4 GHz Enclosed Yagi Wifi Antenna 12 dBi N Female
Narrative
L-COM Connectivity Product's HG2412Y-NF Hypergain HG2412Y radome enclosed Yagi Wi-Fi antenna features high gain and a 45 deg. beam width. It is ideally suited for directional and multipoint IEEE 802.11b, 802.11g and 802.11n wireless LANs, Bluetooth(R), public wireless hotspot applications and other systems operating in the 2.4 GHz ISM band. The unique design of this antenna allows it to be installed for either vertical or horizontal polarization. This WiFi antenna is enclosed within a UV-stable, UL flame rated radome for all-weather operation. The HG2412Y antenna is supplied with a 60 deg. tilt and swivel mast mount kit.
Manufacturer
L-Com Connectivity Product
Item Weight
2.9 lb
Item Width
3.3 in
Gain dBd
3.85 dBd
Maximum VSWR
1.8:1
Item Length
17.9 in
Connector Placement
Bottom
Lightning Protection
DC Short
Electrical Downtilt
Fixed
Maximum Power
100 W
RF Connectors
N Female, N Female
Specific Frequency
2400-2500 MHz
Fixed Electrical Downtilt
0 deg
Gain dBi
12 dBi
Polarization
Dual
Maximum Rated Wind Velocity
130 mile/h
