Product Description

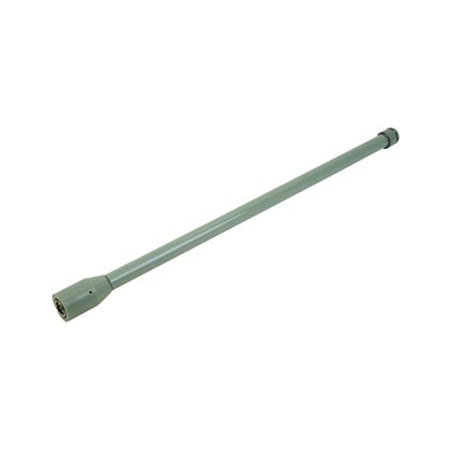

2.4 GHz 8.5 dBi Omnidirectional Antenna - N-Male
Narrative
The L-com HyperGain HG2409U is a high performance omnidirectional Wi-Fi antenna designed for the 2.4 GHz ISM band and 2.36 GHz CDMA band. This compact and lightweight antenna is ideally suited for IEEE 802.11b, 802.11g and 802.11n wireless LANs, public wireless hotspots, Bluetooth(R) and other multipoint and mobile applications where high gain and wide coverage is desired.
Constructed for all-weather operation, the HG2409U features sealed collinear brass elements inside a durable UV-stable machine gray fiberglass radome. A vented end cap and drain holes in the base help prevent moisture buildup inside the antenna. These features allow the HG2409U to be mounted in up or down positions. Optional HMA3 domed magnetic mount. 2 5/8 in diameter base (66.8 mm)
Constructed for all-weather operation, the HG2409U features sealed collinear brass elements inside a durable UV-stable machine gray fiberglass radome. A vented end cap and drain holes in the base help prevent moisture buildup inside the antenna. These features allow the HG2409U to be mounted in up or down positions. Optional HMA3 domed magnetic mount. 2 5/8 in diameter base (66.8 mm)
Manufacturer
L-Com Connectivity Product
Gain dBd
6.35 dBd
Maximum VSWR
2.0:1
Lightning Protection
DC Short
Maximum Power
100 W
RF Connectors
N Male
Specific Frequency
2360-2500 MHz
Gain dBi
8.5 dBi
Maximum Rated Wind Velocity
150 mile/h
