Galtronics 04127261-05777-1
Regular price
$000
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Product Description

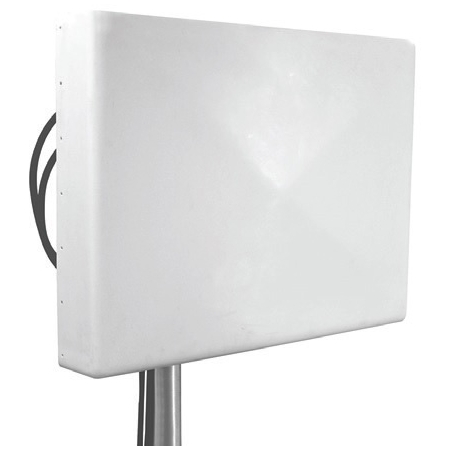

698-960/1710-2700 MHz Narrow Beam Antenna
Product Narrative
GALTRONICS USA, INC.'s 04127261-05777-1 698 – 960/1710 – 2700 MHz 60/60 deg. narrow beam directional antenna MIMO antenna. 2 x 4.3-10 DIN Female. Includes bracket 62-45-09.
Manufacturer
Galtronics USA, Inc
Maximum Rated Wind Velocity
150 mile/h
RF Connectors
4.3-10 Female
Minimum Front Back Ratio
25 dB
Horizontal Beamwidth
23 deg, 25 deg, 28 deg, 30 deg, 28 deg, 32 deg, 35 deg, 35 deg
Item Width
13.2 in
Maximum Power
150 W
Item Length
5.0 in
Maximum Power
70 deg, 65 deg, 70 deg, 67 deg, 66 deg
Lightning Protection
1.5:1
Item Length
14.3 dBi, 15.2 dBi, 16.4 dBi, 17.0 dBi, 17.3 dBi
Fixed Electrical Downtilt
0 deg
Polarization
+/- 45 Degrees
Gain dBi
12.5 dBi, 13.0 dBi, 13.5 dBi, 13.5 dBi, 14.0 dBi, 15.0 dBi, 15.5 dBi, 15.5 dBi
Maximum VSWR
1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1
Electrical Downtilt
Fixed
Connector Placement
Back
Specific Frequency
698-750 MHz, 750-820 MHz, 820-960 MHz, 1710-1910 MHz, 1910-2180 MHz, 2180-2700 MHz
Item Weight
5.73 lb
Item Height
13.8 in
