Product Description

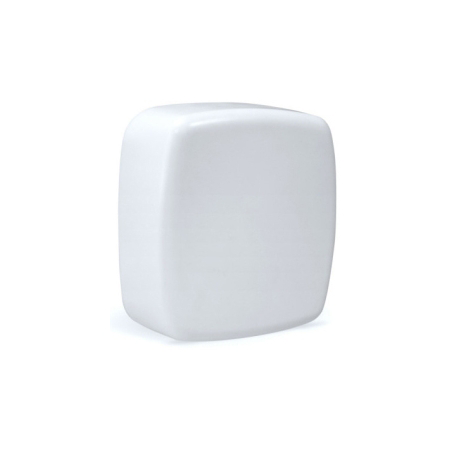

698-960/1710-2700 MHz Narrow Beam Antenna
Product Narrative
GALTRONICS's 04127261-05778-1 698 – 960 and 1710 – 2700 MHz 30/30 deg. narrow beam directional antenna MIMO antenna. Two (2) 4.3-10 DIN Female. Includes bracket 62-45-09.
Manufacturer
Galtronics USA, Inc
Maximum Rated Wind Velocity
150 mile/h
RF Connectors
4.3-10 Female
Minimum Front Back Ratio
25 dB
Type of Hardware Included
Includes bracket 62-45-09
Horizontal Beamwidth
62 deg, 56 deg, 58 deg, 63 deg, 58 deg, 63 deg, 67 deg
Item Width
30.9 in
Maximum Power
150 W
Lightning Protection
Not Specified
Item Length
6.1 in
Fixed Electrical Downtilt
0 deg
Polarization
+/- 45 Degrees
Gain dBi
8.0 dBi, 8.0 dBi, 8.5 dBi, 8.5 dBi, 9.0 dBi, 9.0 dBi
Maximum VSWR
1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1
Electrical Downtilt
Fixed
Connector Placement
Back
Specific Frequency
698-750 MHz, 750-820 MHz, 820-960 MHz, 1710-1910 MHz, 1910-2180 MHz, 2180-2700 MHz
Item Weight
26.45 lb
Item Height
24.7 in
