Amphenol ProComm WPA700908CFEDIN0
Regular price
$1,79995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
DOCUMENTS
DOCUMENTS
Description
Description
Product Description

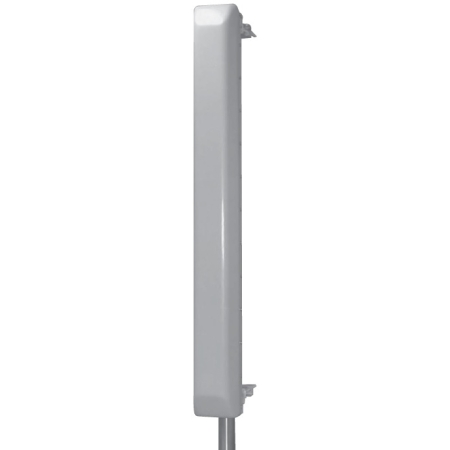

696-960 MHz Panel Antenna, 90 Deg, DIN Conn, 8'
Product Narrative
AMPHENOL's WPA700908CFEDIN0 696 – 960 MHz panel antenna. Vertical polarization. 90 deg. horizontal beamwidth, 13.0 dBd, 500 W elongated 7/16 DIN connector. 8 ft.
Manufacturer
Amphenol Antenna Solutions
Specific Frequency
696-806 MHz, 806-960 MHz
Item Length
94.6 in
Maximum VSWR
1.35:1
Polarization
Vertical
Item Height
5.9 in
Gain dBd
13.0 dBd, 12.5 dBd
Gain dBi
15.1 dBi, 14.6 dBi
Lightning Protection
DC Ground
Connector Placement
Center
Electrical Downtilt
Fixed
RF Connectors
7/16 DIN Female
Item Weight
22.9 lb
Horizontal Beamwidth
90 deg
Maximum Power
500 W
Minimum Front Back Ratio
23.8 dB
Type of Hardware Included
Not Specified
Item Width
8.0 in
Maximum Rated Wind Velocity
125 mile/h
