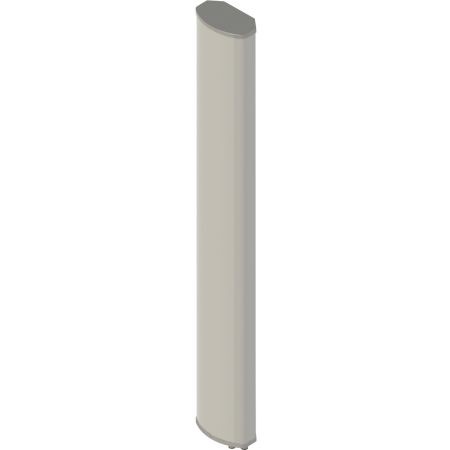

Amphenol ProComm CWX063X25G00
Regular price
$3,39995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Product Description
696-960/1710-2170 MHz Dual Band VET Panel Antenna
Product Narrative
AMPHENOL's 696 – 960 / 1710 – 2170 MHz dual-band VET panel antenna CWX063X25G00. RET AISG v2.0 / 3GPP. Four (4) 7/16 DIN Female connectors.
Manufacturer
Amphenol Antenna Solutions
RF Connectors
7/16 DIN Female
Polarization
+/- 45 Degrees
Item Height
7.1 in
Variable Electrical Downtilt
0-10 deg, 0-10 deg
Connector Placement
Bottom
Item Weight
38.7 lb
Electrical Downtilt
Variable
Item Width
12.0 in
Horizontal Beamwidth
70 deg, 65 deg, 70 deg, 67 deg, 66 deg
Maximum VSWR
1.5:1
Gain dBi
16.3 dBi, 16.8 dBi, 16.4 dBi, 17.0 dBi, 17.3 dBi
Minimum Front Back Ratio
25 dB
Maximum Rated Wind Velocity
150 mile/h
Lightning Protection
DC Ground
Specific Frequency
696-960 MHz, 1710-2170 MHz
Maximum Power
500 W, 250 W
Item Length
98.7 in
