Product Description
4.9-5.8 GHz 19dBi Dual Polarized Panel Antenna
Product Narrative

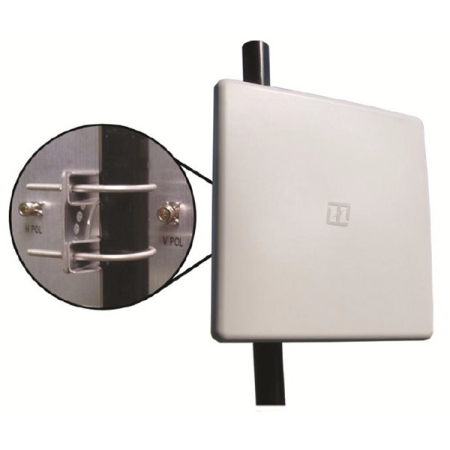

The L-Com HyperLink HG4958DP-19P flat panel antenna combines vertical and horizontal polarization with high gain over broadband frequency in a single enclosure. It is a professional quality antenna designed primarily for MIMO point-to-multipoint and point-to-point applications in the 4.9 GHz – 5.8 GHz frequency bands. The HG4958DP-19P supports 802.11a and 802.11n and MIMO applications.
This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor and outdoor operation. The HG4958-19DP antenna is supplied with a tilt and swivel mast mount kit. This allows quick installation at various degrees of up and down tilt for easy alignment.
This aesthetically pleasing antenna features a heavy-duty UV-resistant plastic radome ideal for all-weather indoor and outdoor operation. The HG4958-19DP antenna is supplied with a tilt and swivel mast mount kit. This allows quick installation at various degrees of up and down tilt for easy alignment.
Manufacturer
L-Com Connectivity Product
Maximum VSWR
1.8:1
Item Weight
3.5 lb
Horizontal Beamwidth
86 deg
Gain dBi
19 dBi
Lightning Protection
DC Ground
Connector Placement
Back
Minimum Front Back Ratio
25 dB
Maximum Power
10 W
RF Connectors
N Female
Maximum Rated Wind Velocity
125 mile/h
Polarization
Dual, Vertical, Horizontal
Item Width
0.98 in
Specific Frequency
4900-5850 MHz
Item Length
12.40 in
Item Height
12.40 in
