Product Description
696-960/1695-2700 MHz Tri Band VET Panel Antenna
Product Narrative

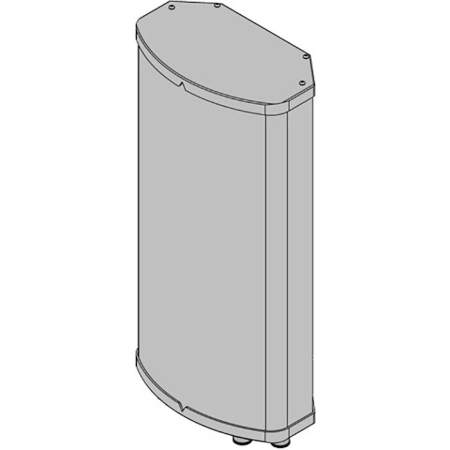

Amphenol's CUUX063X06F00D0 696 – 960 / 1695 – 2700 MHz tri band VET panel antenna
Manufacturer
Amphenol Antenna Solutions
Connector Placement
Bottom
Electrical Downtilt
Variable
Horizontal Beamwidth
75 deg, 70 deg, 65 deg, 70 deg, 75 deg, 75 deg
Maximum VSWR
1.5:1
Gain dBi
10.5 dBi, 11.0 dBi, 13.5 dBi, 14.0 dBi, 14.0 dBi, 14.0 dBi
Minimum Front Back Ratio
25 dB
Lightning Protection
DC Ground
Maximum Rated Wind Velocity
150 mile/h
Specific Frequency
696-806 MHz, 806-960 MHz, 1695-1880 MHz, 1850-1990 MHz, 1920-2200 MHz, 2300-2700 MHz
Maximum Power
500 W, 300 W
Variable Electrical Downtilt
0-14 deg, 0-10 deg
RF Connectors
7/16 DIN Female
Polarization
+/- 45 Degrees
