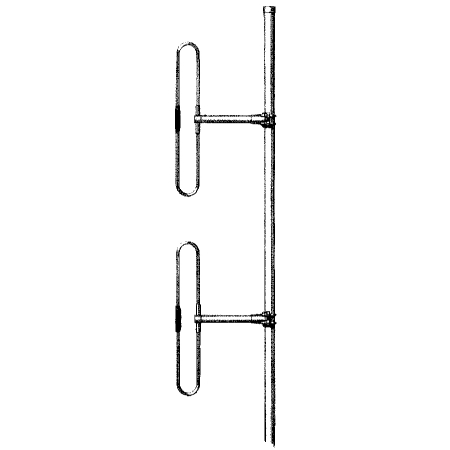

Sinclair SD212-SF2P2SNMD00
Regular price
$1,29995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
DOCUMENTS
DOCUMENTS
Description
Description
Product Description
138-174MHz 5dBd 2 Element Dipole Antenna, 1/2 Wave
Narrative
Sinclair's SD212-SF2P2SNM two-bay dipole antenna covers the 138 – 174 MHz frequency band. This VHF 5 dBd gain in an elliptical (bidirectional) pattern features a 1/2 wave configuration. The maximum power rating is 300 W. The standard connector offered in N Male connector terminated on a 1 ft cable. Order the mounting clamps separately. The SMK-125-A3 side-mount kit is recommended (spacing from 3 ft – 18 in).
Manufacturer
Sinclair Technologies
Item Height
120 in
Jumper Included
Yes
Item Width
3 in
RF Connectors
N Male
Item Length
40 in
Tuned Frequency (MHz)
138-174
Polarization
Vertical
Gain dBi
7.1 dBi
Gain dBd
5 dBd
Item Weight
16 lb
Type of Hardware Included
None
Specific Frequency
138-174 MHz
Maximum Rated Wind Velocity
125 mile/h
Vertical Beamwidth
34 deg
Maximum VSWR
1.5:1
Antenna Pattern
Bidirectional
Maximum Power
300 W
Lightning Protection
DC Ground
Connector Placement
Pigtail
