Manufacturer
Mars Antennas
Product Description

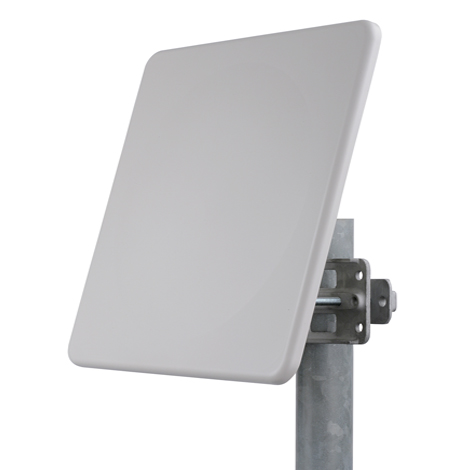

902-928MHz 10.0dBi Panel Subscriber Antenna,Canopy
Product Narrative
MARS's MA-IS91-T2C 902 – 928 MHz panel subscriber antenna for Canopy. 10.0 dBi gain N Female connector. Order MNT-22 mount.
Minimum Front Back Ratio
25 dB
Item Height
1 in
Polarization
Linear
Item Width
12 in
Specific Frequency
902-928 MHz
Maximum VSWR
1.5:1
Electrical Downtilt
Fixed
Item Weight
3 lb
RF Connectors
N Female
Horizontal Beamwidth
55 deg
Lightning Protection
DC Ground
Maximum Power
100 W
Lightning Protection
DC Ground
Connector Placement
Back
Item Length
12 in
Maximum Rated Wind Velocity
125 mile/h
Gain dBd
7.85 dBd
Maximum Power
10 W
Gain dBi
10 dBi
