Product Description
860-960MHz Circular Polarization 9dBi, RFID Reader
Product Narrative

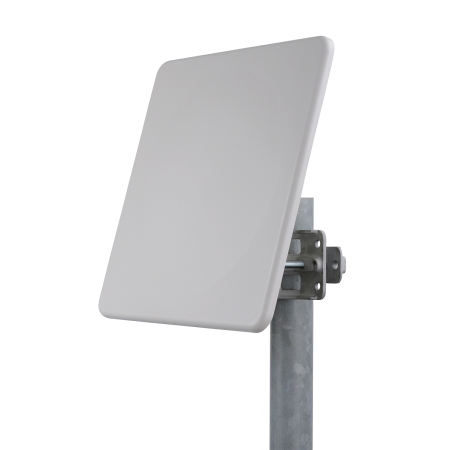

MARS's MA-WC910-RHCP9b 860 – 960 MHz circular polarization, RFID reader antenna, 9 dBi. The RFID antenna from Mars is an innovative antenna that adds flexibility to the RFID system. This antenna covers the standard 902 – 928 MHz RFID frequency, as well as a wide frequency band of 860 – 960 MHz with a RHCP circular polarization, low VSWR, and axial ratio. It includes MNT-23.
Manufacturer
Mars Antennas
Horizontal Beamwidth
65 deg
Item Height
12.01 in
Maximum Rated Wind Velocity
124.274 mile/h
Specific Frequency
860-960 MHz
Item Length
12.01 in
Maximum VSWR
1.7:1
RF Connectors
N Female
Item Weight
1.10 lb
Maximum Power
10 W
Lightning Protection
DC Grounded
Item Width
1.18 in
Gain dBi
9 dBi
