Product Description

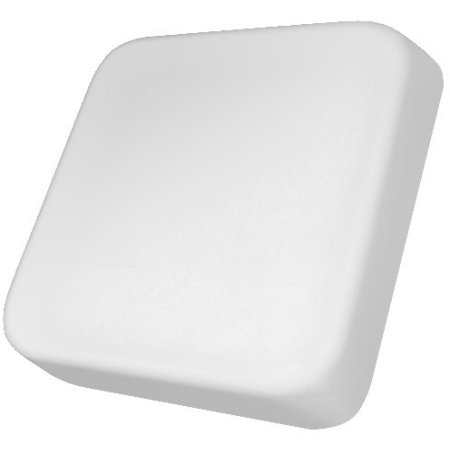

698-2700MHz Dual Slant Directional Antenna
Product Narrative
MARS Antennas MA-WA6927-DS7B 698-2700 MHz Dual Slant Directional Antenna with MNT-22 Mount. Mars Dual Slant Antenna covers all the bands for LTE, 3G, 2.5G and 2G Cellular, as well as ISM, WLAN, Bluetooth, GSM 900 and GSM 1900.
Manufacturer
Mars Antennas
Minimum Front Back Ratio
15 dB
Item Height
12.2 in
Maximum Rated Wind Velocity
124.274 mile/h
Polarization
+/- 45 Degrees
Item Width
12.2 in
Specific Frequency
1700-2700 MHz, 698-960 MHz
Maximum VSWR
2.0:1, 1.8:1
Item Weight
.441 lb
RF Connectors
SMA Female
Horizontal Beamwidth
70 deg, 40 deg
Lightning Protection
DC Ground
Maximum Rated Wind Velocity
125 mile/h
Gain dBi
4 dBi, 7 dBi
