Product Description
698-960/1695-2700/5100-5900MHz Triple Band Antenna
Product Narrative

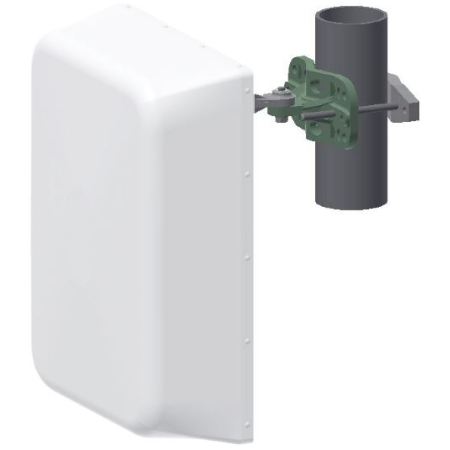

Mars Antennas MA-WA692755-TBDP8B 698-960/1695-2700/5100-5900MHz Triple Band & Dual Polarization Directional Antenna. This antenna includes 2 x N-Type Female connectors with MNT-22 Mount
Manufacturer
Mars Antennas
Item Height
15.74 in
Polarization
Horizontal, Vertical
Item Width
12.12 in
Specific Frequency
5100-5900 MHz, 2300-2700 MHz, 1695-2300 MHz, 698-960 MHz
Maximum VSWR
2.0:1, 2.0:1, 2.0:1, 2.0:1
Item Weight
4.41 lb
RF Connectors
N Female, N Female
Lightning Protection
DC Ground
Item Length
4.96 in
Maximum Power
50 W
Type of Hardware Included
MNT-22
Gain dBi
7.5 dBi, 8 dBi, 10 dBi, 9 dBi
