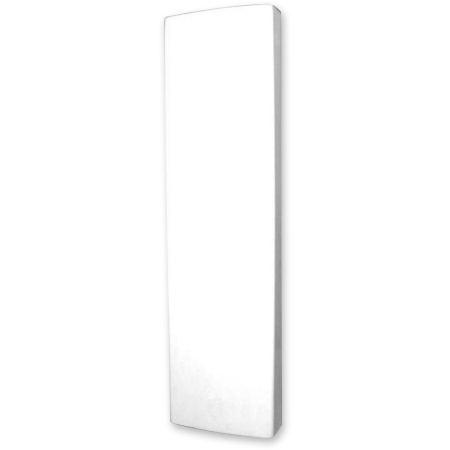

Mars Antennas MA-WC90-5XB
Regular price
$1,56695
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Product Description
902-928 MHz Panel, Vertical Pol, 14.5 dBi
Product Narrative
The Mars MA-WC90-5XB 902 – 928 MHz base station antenna provides a robust and efficient solution for the point-to-multipoint systems based on the ISM 915 MHz band. It includes the MNT-25 mount.
Manufacturer
Mars Antennas
Item Height
4.1 in
Maximum Rated Wind Velocity
124 mile/h
Horizontal Beamwidth
60 deg
Specific Frequency
902-928 MHz
Item Length
47.2 in
Maximum VSWR
1.7:1
RF Connectors
N Female
Item Weight
8.82 lb
Gain dBd
12.35 dBd
Maximum Power
50 W
Item Width
13 in
Electrical Downtilt
Fixed
Minimum Front Back Ratio
23 dB
Polarization
Vertical
Gain dBi
14.5 dBi
