Comet DS-150S
MPN DS-150SSKU 1079Product type Base Antenna
Regular price
$14495
Unit price
Key Specifications
- Frequency Range
- 24-26 MHz, 26-28 MHz, 28-30 MHz, 30-40 MHz, 40-50 MHz, 50-54 MHz, 54-88 MHz, 88-108 MHz, 108-118 MHz, 118-137 MHz, 137-144 MHz, 144-148 MHz, 148-156 MHz, 156-164 MHz, 164-174 MHz, 174-216 MHz, 216-225 MHz, 225-380 MHz, 380-406 MHz, 406-420 MHz, 420-430 MHz, 430-440 MHz, 440-450 MHz, 450-460 MHz, 460-470 MHz, 470-490 MHz, 490-512 MHz, 512-617 MHz, 617-698 MHz, 698-758 MHz, 758-806 MHz, 806-824 MHz, 824-869 MHz, 869-896 MHz, 896-902 MHz, 902-928 MHz, 928-960 MHz, 960-1164 MHz, 1164-1240 MHz, 1240-1300 MHz
- Antenna Design
- Omnidirectional
- Gain
- Low Gain (0-3 dBi)
Product details
Manufacturer
NCG Comet
Model #
DS-150S
Product Narrative

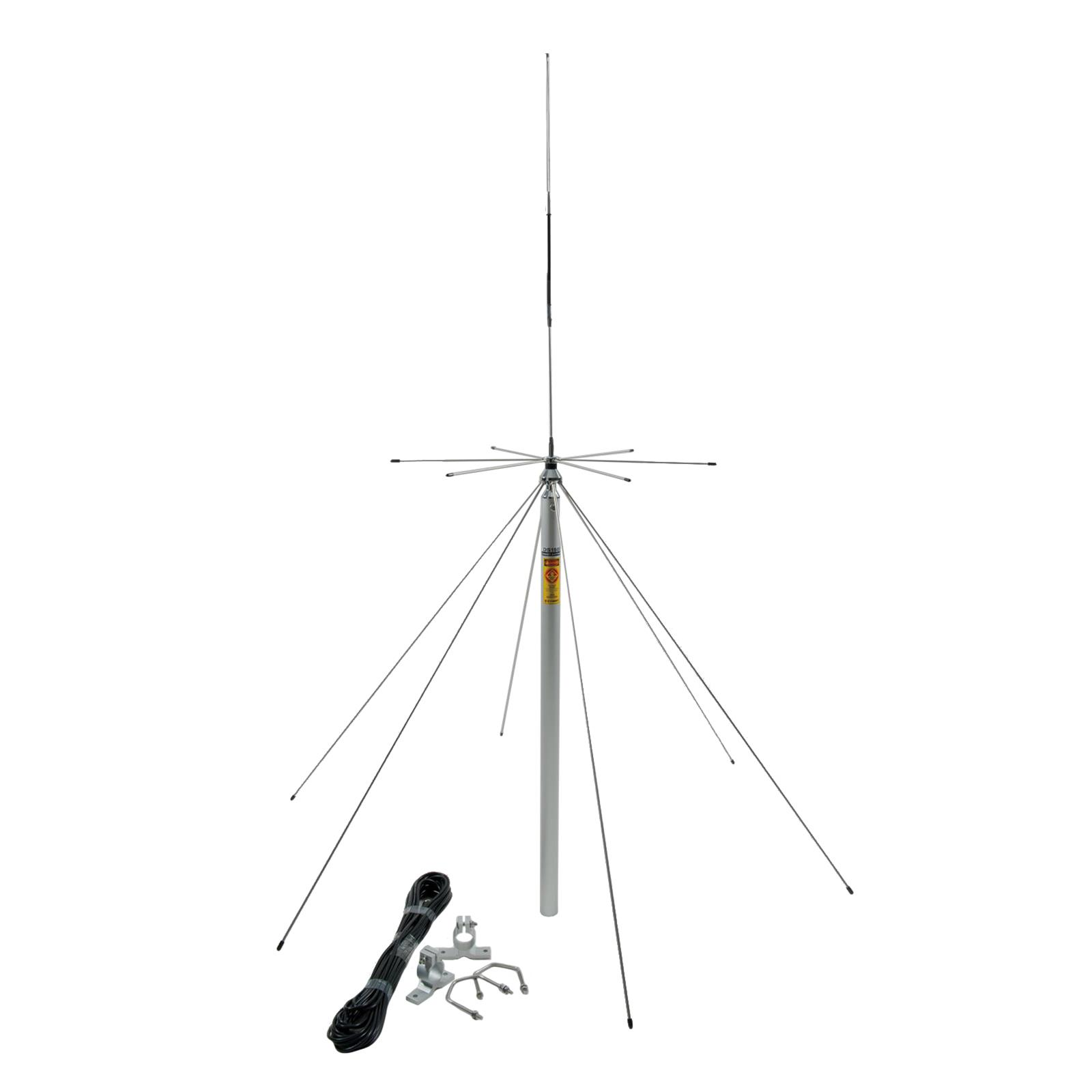

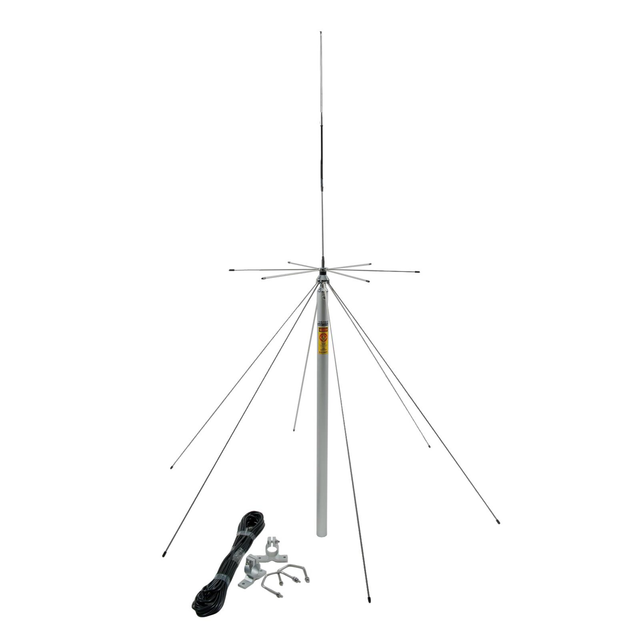

Extremely wideband Scanner/Receive antenna. Includes 65 feet of RG-58A/U coax with PL-259 connector installed
Specific Freq. (MHz)
Receive 25-1300 MHz (Transmit 6M/2M/440/900/1200MHz)
Gain (dB)
Unity/2/4
Maximum Input Power (Watts)
100 watts
Bandwidth >1.5 VSWR
Varies
Direct Termination
SO-239 (UHF Female)
Rated Wind Velocity (RWV, MPH)
100 MPH
Overall Length
4’8"
Mount Hdw. Incl.
Yes
Weight
3 lbs 3 oz
Warranty
1 Year
