Product Description
890-960 MHz 6.4 dBd Element Yagi Antenna
Product Narrative

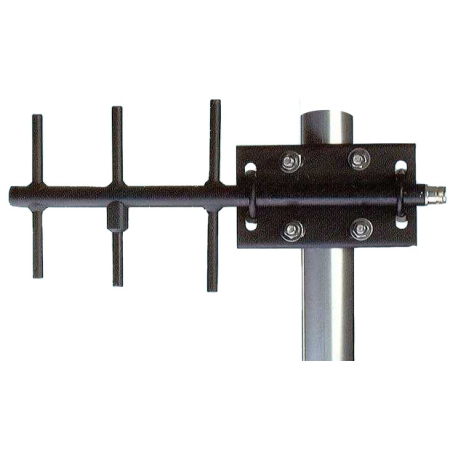

PCTEL's BMOY8903 black Yagi antenna has been optimized to achieve superior performance over the entire 900 MHz and UHF frequency bands. This 890 – 960 MHz directional Yagi antenna is a three-element, 6.4 dBd gain and has a maximum power input of 150 W. The BMOY8903 is terminated with an N Female connector and is supplied with the MYK17 mast mount bracket. Maximum mounting pipe diameter is 1.9 in OD pipe.
Seamless aluminum construction, 360 deg. welds, and a powder coated finish give this Yagi antenna superior durability and outstanding performance in all-weather conditions.
Seamless aluminum construction, 360 deg. welds, and a powder coated finish give this Yagi antenna superior durability and outstanding performance in all-weather conditions.
Manufacturer
PCTEL
Tuned Frequency (MHz)
N/A
Horizontal Beamwidth
100 deg
Item Length
14 in
RF Connectors
N Female
Gain dBi
8.5 dBi
Lightning Protection
DC Ground
Vertical Beamwidth
54 deg
Connector Placement
Bottom
Polarization
Linear
Maximum Power
150 W
Type of Hardware Included
MYK17 Pipe Mount (1.9" OD Max)
Specific Frequency
890-960 MHz
Gain dBd
6.4 dBd
Item Weight
0.7 lb
Maximum Rated Wind Velocity
200 mile/h
Maximum VSWR
1.5:1
