Westell CS03-003-090
Regular price
$12995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description
Product Narrative

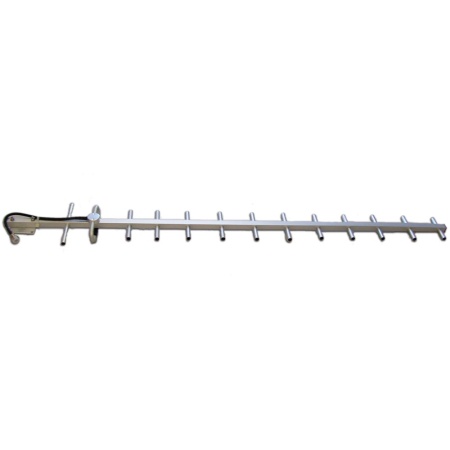

806-960MHz 14dBi 13 Element Yagi Antenna
Product Description
WESTELL's CSI-AY/806 – 960/14 Yagi antenna operates within the frequency range of 806 – 960 MHz and has a gain of 14 dBi. This Yagi antenna features 13 elements, has a hermetically sealed driven element and is a rugged lightweight design. The vertically polarized antenna has a power input of 100 W and is terminated with an N Female connector. The stainless steel hardware and U-bolts for pipes up to 1 7/8 in are included.
Manufacturer
Westell, Inc.
Vertical Beamwidth
30 deg
Maximum VSWR
1.5:1
Polarization
Vertical
Item Weight
2.2 lb
Gain dBd
12 dBd
Item Width
2.2 in
Jumper Included
Yes
Item Height
7.9 in
Horizontal Beamwidth
34 deg
Maximum Rated Wind Velocity
134 mile/h
Connector Placement
Pigtail
Lightning Protection
DC Ground
Type of Jumper Included
Pigtail
Item Length
54.3 in
Maximum Power
100 W
Type of Hardware Included
U-Bolts
Specific Frequency
806-960 MHz
Gain dBi
14 dBi
