Laird TE Connectivity PC904N
Regular price
$8995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Description
Description
Product Description

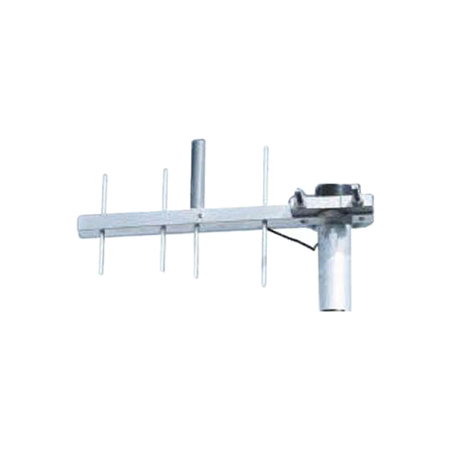

895-980 MHz 6dB 4 Element Yagi Antenna
Product Narrative
LAIRD's PC904N Yagi antenna is designed for 800 MHz, ESMR, SMR, cellular or conventional applications. The four-element antenna has 6 dBd gain and operates in the 896 – 980 MHz frequency range. This Yagi antenna has a maximum power input of 200 W and includes a 19 in pigtail terminated with an N Female connector. U-bolts; maximum mast diameter is 2 1/8 in are supplied for mounting.
Manufacturer
TE Connectivity, Inc.
Polarization
Linear
Gain dBd
6 dBd
Type of Jumper Included
8" Pigtail w/ N Female (TL92887)
Jumper Included
Yes
Type of Hardware Included
U-Bolts
Lightning Protection
DC Ground
Gain dBi
8.15 dBi
Item Weight
1.12 lb
RF Connectors
N Female
Maximum Rated Wind Velocity
125 mile/h
Horizontal Beamwidth
100 deg
Maximum Power
200 W
Connector Placement
Pigtail
Specific Frequency
896-980 MHz
Item Length
13 in
Vertical Beamwidth
70 deg
Maximum VSWR
1.5:1
Warranty
5 Year
