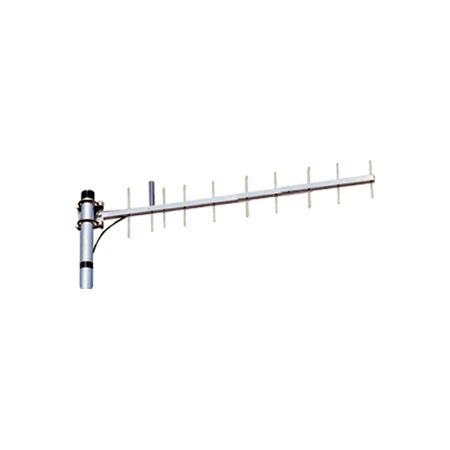

Laird TE Connectivity PC8010N
Regular price
$18995
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
TE Connectivity
Product Description
806-866MHz 11dB 10 Element Yagi Antenna
Product Narrative
LAIRD's PC8010N Yagi antenna is ideal for 800 MHz ESMR and SMR or conventional applications. This 10-element antenna has 11 dBd gain and operates within the frequency range of 806 – 869 MHz. Maximum power input is 200 W and comes with a 19 in pigtail terminated with an N Female connector. U-bolts; maximum mast diameter is 2 1/8 in are supplied for mounting.
Connector Placement
Pigtail
Specific Frequency
806-869 MHz
Item Length
46 in
Vertical Beamwidth
40 deg
Maximum VSWR
1.5:1
Polarization
Linear
Gain dBd
11 dBd
Type of Jumper Included
19"
Jumper Included
Yes
Type of Hardware Included
U-Bolts
Lightning Protection
DC Ground
Gain dBi
13.15 dBi
RF Connectors
N Female
Item Weight
2.4 lb
Horizontal Beamwidth
45 deg
Maximum Rated Wind Velocity
125 mile/h
Maximum Power
200 W
Warranty
5 Year
