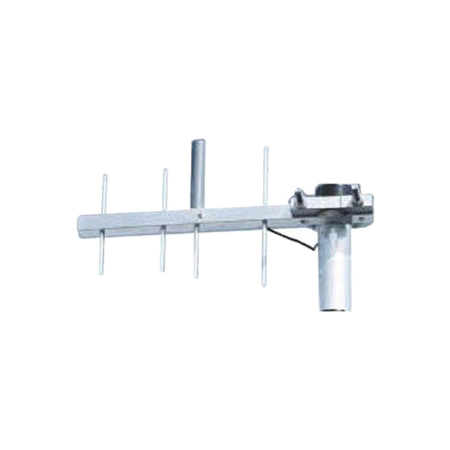

Laird TE Connectivity PC804N
Regular price
$14995
Unit price
Shipping calculated at checkout.
DOCUMENTS
DOCUMENTS
Specs
Description
Description
Manufacturer
TE Connectivity
Product Description
806-902 MHz 6dB 4 Element Yagi Antenna
Product Narrative
LAIRD's PC804N Yagi antenna is designed for 800 MHz, ESMR, SMR, cellular or conventional applications. The four-element Yagi antenna has 6 dBd gain and operates in the 806 – 902 MHz frequency range. This Yagi antenna has a maximum power input of 200 W and includes a 19 in pigtail terminated with an N Female connector. U-bolts; maximum mast diameter is 2 1/8 in are supplied for mounting.
Maximum Power
200 W
Gain dBd
6 dBd
Connector Placement
Pigtail
Type of Jumper Included
19" w/ N Female
Item Length
13 in
Maximum VSWR
1.5:1
Polarization
Linear
Type of Hardware Included
U-Bolts
Jumper Included
Yes
Tuned Frequency (MHz)
U-Bolts
Maximum Rated Wind Velocity
125 mile/h
Horizontal Beamwidth
90 deg
Specific Frequency
806-902 MHz
Vertical Beamwidth
70 deg
Lightning Protection
DC Ground
Gain dBi
8.15 dBi
RF Connectors
N Female
Warranty
5 Year
