Manufacturer
Ventev / TerraWave
Product Description

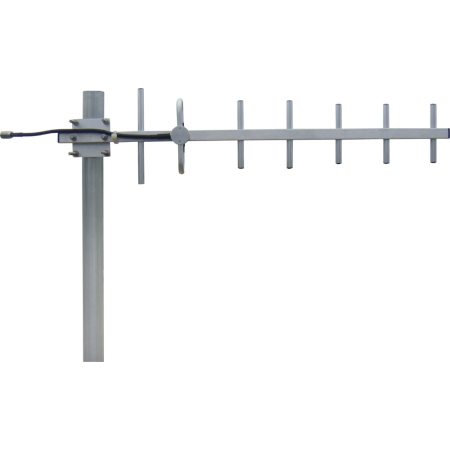

806-960 MHz 10dBi Yagi Antenna
Product Narrative
806– 960 MHz 15 dBi Yagi antenna with N female is designed for applications in the 900 MHz frequency, including, RFID applications, cellular systems, Global System for Mobile (GSM) communications, code-division multiple access systems (CDMA) applications, multipoint applications, and wireless video links. The antenna's high gain and very narrow beamwidths enables long range connections. It can be mounted horizontally or vertically for the best connection. Includes heavy-duty steel mounting brackets and an N-style female connector. Every TerraWave antenna is ROHS compliant and is covered by Ventev’s two-year TerraNet warranty program.
Connector Placement
Pigtail
Maximum Rated Wind Velocity
120 mile/h
Type of Jumper Included
12" Pigtail
Item Length
29.5 in
Type of Hardware Included
Mast Mount
Item Weight
1.5 lb
Maximum Power
50 W
Specific Frequency
806-960 MHz
Maximum VSWR
1.5:1
Polarization
Linear
Gain dBd
10 dBi
Jumper Included
Yes
Gain dBi
10 dBi
RF Connectors
N Female
Horizontal Beamwidth
54 deg
Vertical Beamwidth
48 deg
