Description
Description
Manufacturer
RFS
Product Description
154-174 MHz Unity Gain Fiberglass Omni Antenna
Product Narrative

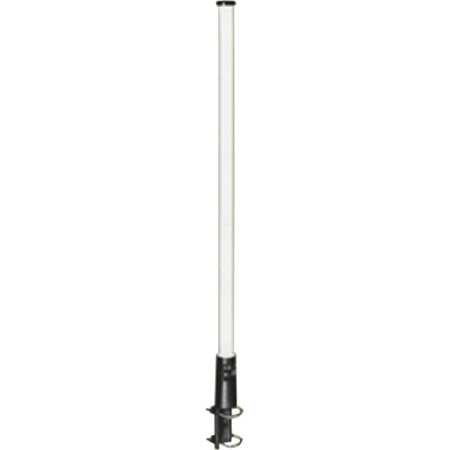

RFS's BA1010-2 omnidirectional fiberglass antenna operates in the 154 – 174 MHz frequency range. This unity gain VHF omni antenna has a maximum power input of 500 W and is terminated with an N Female connector.
This heavy-duty antenna is permanently affixed to a unique mounting fixture that allows for mounting either on top of or alongside of most vertical supports. The antenna includes a bracket and U-bolts for mounting.The RFS BA1010-2 omnidirectional fiberglass antenna is ideal for use as an emergency backup antenna.
This heavy-duty antenna is permanently affixed to a unique mounting fixture that allows for mounting either on top of or alongside of most vertical supports. The antenna includes a bracket and U-bolts for mounting.The RFS BA1010-2 omnidirectional fiberglass antenna is ideal for use as an emergency backup antenna.
RF Connectors
N Female
Polarization
Vertical
Item Height
55.199999999999996 in
Item Width
3 in
Gain dBi
2.1 dBi
Type of Hardware Included
Bracket and U-Bolts
Specific Frequency
154-174 MHz
Maximum Rated Wind Velocity
100 mile/h
Item Weight
8.8 lb
Maximum VSWR
1.5:1
Item Length
3 in
Maximum Power
500 W
Lightning Protection
DC Ground
