Product Description
146-164 MHz 2.1 dBi Fiberglass Omni Antenna
Product Narrative

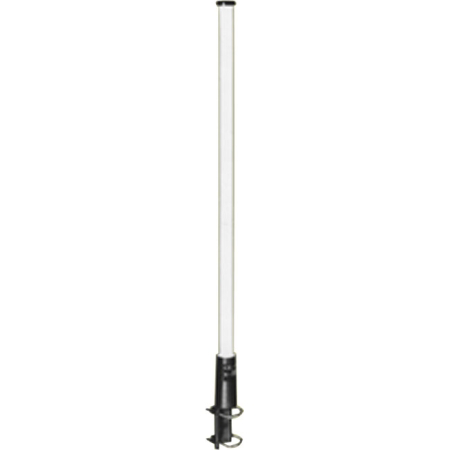

RFS's BA1010-1 omnidirectional fiberglass antenna operates in the 146 – 164 MHz frequency range. This 2.1 dBi VHF omni antenna is has a maximum power input of 500 W and is terminated with an N Female connector.
This heavy-duty omnidirectional antenna is permanently affixed to a unique mounting fixture that allows for mounting either on top of or alongside of most vertical supports. The RFS's BA1010-1 omnidirectional fiberglass antenna includes a bracket and U-bolts for mounting.
This heavy-duty omnidirectional antenna is permanently affixed to a unique mounting fixture that allows for mounting either on top of or alongside of most vertical supports. The RFS's BA1010-1 omnidirectional fiberglass antenna includes a bracket and U-bolts for mounting.
Lightning Protection
DC Ground
Gain dBd
0 dBd
RF Connectors
N Female
Item Height
56.400000000000006 in
Polarization
Vertical
Item Width
3 in
Type of Hardware Included
Bracket and U-Bolts
Gain dBi
2.1 dBi
Specific Frequency
146-164 MHz
Maximum Rated Wind Velocity
100 mile/h
Item Weight
8.8 lb
Maximum VSWR
1.5:1
Item Length
3 in
Maximum Power
500 W
