Description
Description
Manufacturer
Commander Technologies
Product Description

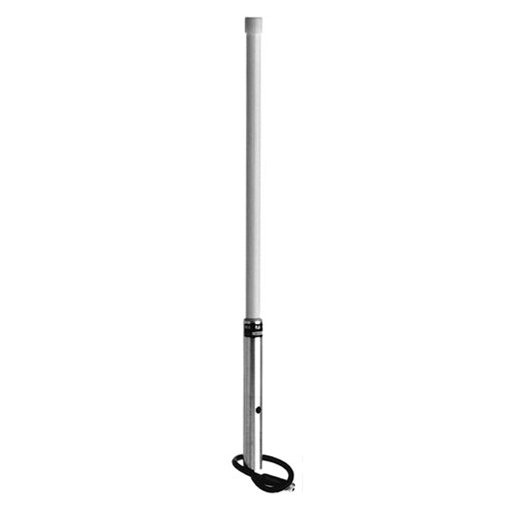

460-470 MHz Unity Gain Fiberglass Omni Antenna
Product Narrative
PCTEL's MFB4600 is a unity gain fiberglass omnidirectional antenna operating in the 460 – 470 MHz frequency range. This UHF omni antenna has a power input of 250 watts, is DC grounded, and terminated with an N Male connector at the end of a 16 in jumper. Order the mounting hardware separately.
This economical omni antenna is composed of base matched half-wave antennas that are enclosed in heavy-duty fiberglass radome with a sturdy aluminum mounting base. PCTEL's low-cost omnidirectional fiberglass antenna is reliable for long term use.
This economical omni antenna is composed of base matched half-wave antennas that are enclosed in heavy-duty fiberglass radome with a sturdy aluminum mounting base. PCTEL's low-cost omnidirectional fiberglass antenna is reliable for long term use.
Specific Frequency
460-470 MHz
Lightning Protection
DC Ground
Item Weight
1 lb
Item Length
2.75 in
Maximum VSWR
1.5:1
Item Weight
22 lb
RF Connectors
N Male
Gain dBi
2.15 dBi
Polarization
Vertical
Jumper Included
Yes
Maximum Power
250 W
Maximum VSWR
1.5:1
Type of Hardware Included
Order Separately
Item Height
30 in
Maximum Rated Wind Velocity
100 mile/h
