Manufacturer
PCTEL
Product Description

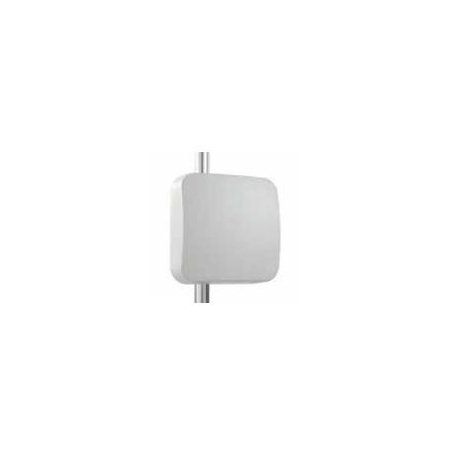

4G LTE MIMO Panel Antenna w/ N-Female Connectors
Product Narrative
PCTEL's 4G LTE MIMO directional panel antenna with high gain and N Female connectors. Rugged housing design. Includes a heavy-duty mounting bracket, for mast or wall mount installations.
Polarization
Vertical, Horizontal, +/- 45 Degrees
Item Length
12.0 in
Minimum Front Back Ratio
20 dB
Gain dBi
8.2 dBi, 8.0 dBi
Item Width
12.0 in
Connector Placement
Back
Item Weight
2.0 lb
Horizontal Beamwidth
55 deg, 65 deg
Maximum VSWR
2.0:1
Maximum Power
50 W
Maximum Rated Wind Velocity
125 mile/h
Specific Frequency
698-960 MHz, 1710-2700 MHz
RF Connectors
N Female
Item Height
4.4 in
Electrical Downtilt
Fixed
